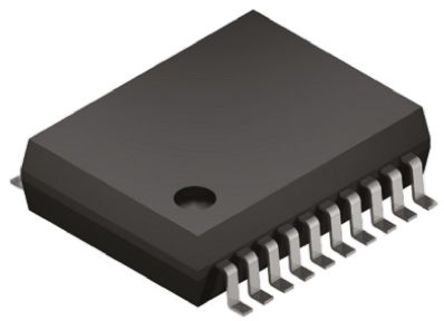

MAX3160CAP+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC13673733
Category:
Interface IC, Interface Controller
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
MAXIM INTEGRATED PRODUCTS MAX3160CAP+. Transceiver RS232/RS422/RS485 Driver, 3V-5.5V Supply, SSOP-20
Stock Locations:
Availability:
238 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.68

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX3160CAP+ is a RS-232/RS-485/422 Multiprotocol Transceiver for point-of-sales equipment. The MAX3160 is programmable +3 to +5.5V RS-232/RS-485/422 multiprotocol transceivers. The MAX3160 is pin programmable as a 2TX/2RX RS-232 interface or a single RS-485/422 transceiver. All devices incorporate a proprietary low-dropout transmitter output stage and an on-board dual charge pump to allow RS-232 and RS-485/422 compliant performance from a +3 to +5.5V supply. These devices also feature pin-selectable transmitter slew rates for both RS-232 and RS-485/422 modes. Slew-rate limiting minimizes EMI and reduces reflections caused by improperly terminated cables, allowing error-free data transmission up to 250kbps. Disabling slew-rate limiting allows these devices to transmit at data rates up to 10Mbps in RS-485/422 mode and up to 1Mbps in RS-232 mode. The MAX3160 offers a flow-through pinout that facilitates board layout.
Integrated protection increases robustness - Thermal protection from excessive power dissipation
Integrated charge-pump circuitry saves board space
1µA Shutdown supply current saves power
Allows up to 256 transceivers on the bus

Show

MAX3160CAP+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Voltage (DC)	3.00V (min)
Number of Channels	2 Channel
Number of Positions	20 Position
Data Rate	1.00 Mbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	7.33 mm
Size-Width	5.38 mm
Size-Height	1.78 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
