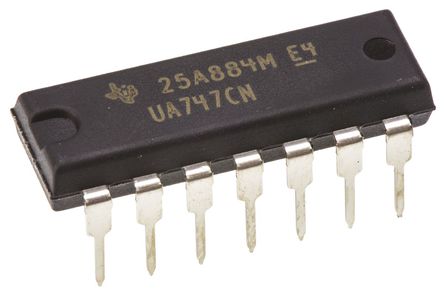

UA747CN - TI
Manufacturer:
TI
ManyChip's Part#:
MC1235747
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UA747CN Operational Amplifier, Dual, 2 Amplifier, 1MHz, 0.5V/µs, ± 9V to ± 15V, DIP, 14Pins
Stock Locations:
Availability:
77 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.06

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UA747CN is a Dual General-purpose Operational Amplifier features offset-voltage null capability. Each half is electrically similar to UA741. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected and the internal frequency compensation ensures stability without external components. A low-value potentiometer may be connected between the offset null inputs to null out the offset voltage. The UA747C is characterized for operation from 0 to 70°C.
No frequency compensation required
Low power consumption
Short-circuit protection
Offset-voltage null capability
Wide common-mode and differential voltage ranges
No latch-up
Green product and no Sb/Br

Show

UA747CN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Operating Voltage	7V ~ 36V
Supply Current	1.7 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	14 Position
Power Dissipation	800 mW
Common Mode Rejection Ratio	70 dB
Input Offset Drift	0.00 V/K
Bandwidth	1 MHz
Slew Rate	500 mV/μs
Gain Bandwidth Product	1 MHz
Input Offset Voltage	1 mV
Input Bias Current	80 nA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	1 MHz
Power Dissipation (Max)	800 mW
Minimum CMRR Range	70 dB
Supply Voltage	7V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	7 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
