Description

Summary of Features:
30% lower E off compared to previous generation
Short circuit withstand time – 10μs
Designed for operation above 30kHz
High ruggedness, temperature stable behaviour
Pb-free lead plating; RoHS compliant
Qualified according to JEDEC for target applications
Target Applications:
Infineon offers a comprehensive IGBT portfolio for the general purpose inverters, solar inverters, UPS, induction heating, microwave oven, rice cookers, welding and SMPS segments.

Show

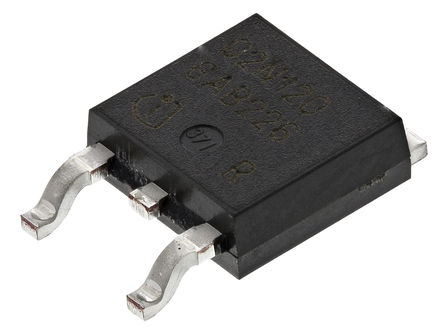

SGD02N120 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Breakdown Voltage (Collector to Emitter)	1200 V
Input Power (Max)	62 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	62 W
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
