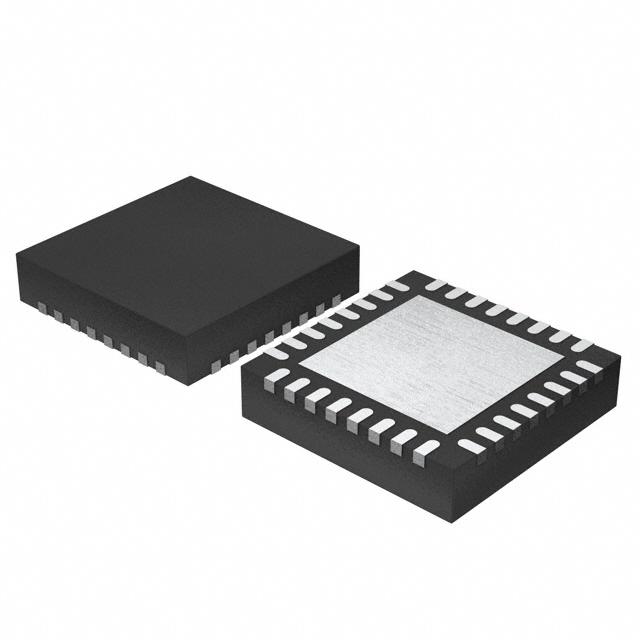

Image is for your reference only,please check specifications for details

TPS65265RHBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC4356900
Category:
DC to DC Converter
Package:
VQFN-32
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS65265RHBT DC-DC Switching Regulator, Synchronous, 3 Output, 4.5V to 17V in, 5A/3A/2A out, 2.3MHz, VQFN-32
Stock Locations:
Availability:
258 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS65265 incorporates triple synchronous buck converters with 4.5-V to 17-V wide input voltage range that encompassed most intermediate bus voltage operating off 5-, 9-, 12- or 15-V power bus or battery. The converter with constant frequency peak current mode is designed to simplify its application while giving designers options to optimize the system according to targeted applications. The switching frequency of the converters can be adjustable from 250 kHz to 2.3 MHz with an external resistor or external clock. 120° out-of-phase operation between Buck1, Buck2, and Buck3 minimizes the input filter requirements.
The TPS65265 operates in pulse skipping mode (PSM) with driving MODE pin to high or leaving float and operates in force continuous current mode (FCC) with connecting MODE pin to GND. PSM mode provides high efficiency by reducing switching losses at light load and FCC mode reduces noise susceptibility and RF interference.
The TPS65265 is available in a 32-pin thermal enhanced QFN (RHB) 5-mm × 5-mm thin package.

Show

TPS65265RHBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	VQFN-32
Number of Outputs	3 Output
Output Voltage	0.6V ~ 15V
Number of Positions	32 Position
Switching Frequency	2.3 MHz
Topology	Buck
Input Voltage (Max)	17 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	17 V
Output Voltage (Min)	0.6 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	17 V
	Show
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
