Description
- The TPS65950A3ZXN is a highly integrated Power Management and audio coder/decoder (codec) integrated circuit that supports the power and peripheral requirements of the OMAP™ application processors. The device contains power management, an audio codec, universal serial bus (USB) high-speed (HS) transceiver, an AC/USB charger, light-emitting diode (LED) drivers, an analog-to-digital converter (ADC), a real-time clock (RTC) and embedded power control. The power portion of the device contains three buck converters, two controllable by a dedicated SmartReflex class-3 interface, multiple low-dropout (LDO) regulators, an embedded power controller (EPC) to manage the power-sequencing requirements of OMAP and an RTC and backup module. The RTC can be powered by a backup battery when the main supply is not present and the device contains a coin-cell charger to recharge the backup battery as needed.
- 10 External linear LDOs for clocks and peripherals
- SmartReflex™ dynamic voltage management
- Audio - LED driver circuit for two external LEDs
- 10-bit MADC with 3 to 8 external inputs
- RTC and retention modules
- HS inter-integrated circuit (I2C) serial control
- Thermal shutdown and hot-die detection
- Keypad interface (up to 8 x 8)
- External vibrator (vibrator) control
- 19 GPIO devices
- Voice codec
- Differential input main and submicrophones
- Differential headset microphone input
- Auxiliary/FM input (mono or stereo)
- Bluetooth® interface
- Li-ion, Li-on polymer and cobalt-Nickel-manganese charger
- USB 2.0 OTG-compliant HS transceivers
- 12-bit ULPI
- USB power supply (5V CP for VBUS)
TPS65950A3ZXN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 209 Pin |

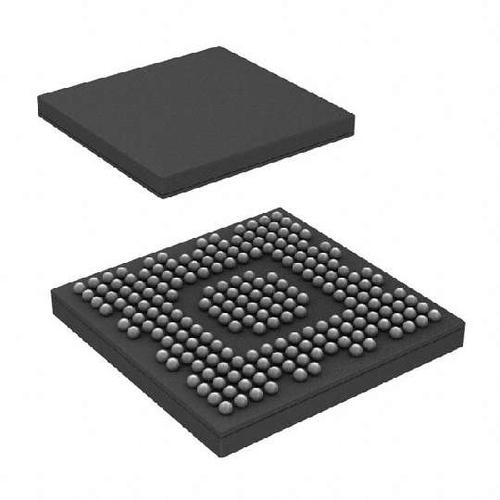

| Case/Package | NFBGA-209 |
| Supply Voltage (DC) | 4.50 V |
| Number of Positions | 209 Position |
| Number of Regulated Outputs | 13 Output |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 4.5 V |
| Show | |
| Size-Height | 0.68 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 5A991.g |
