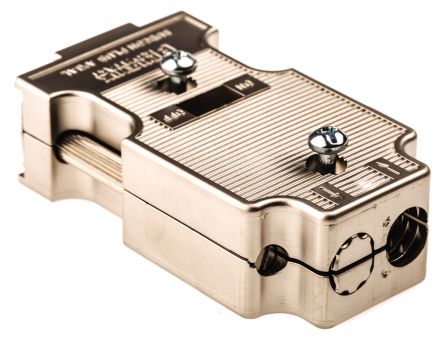

Image is for your reference only,please check specifications for details
- 2744380 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC39947611
-
Category:D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
-
Datasheet:Datasheet 3D Model
-
Description:"Phoenix 2744380 Male D-Sub Bus Connector 100 Milli-Amp, 50V, Metal Plated ABS Housing, 9Positions, "
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PHOENIX CONTACT"s SUBCON product provides a means to make D-SUB cable assemblies without the hassle of soldering or crimping. The SUBCON product provides connection from the pins of a D-SUB connector to individual screw actuated terminal blocks all in a D-SUB clamshell housing. This means that the only tool required to configure a cable is a screwdriver.
- **Features:**
- * Metallized Housing
- * Integral Jack Screws
- * Integral Strain Relief
- * D-SUB to MKDSC 1.5 Terminal Blocks
- * 9/25 Pin Male or Female Versions
- * Max. Cable Diameter: 10 mm; AWG 26-14
- **Benefits:**
- * EMI/RFI Shielded (Ideal for Sensitive Communication Signals)
- * Secure Connection of Cable Assembly to Mating Receptacle
- * Secure Connection of SUBCON to Cable
- * Easy Means to Construct Cable Assemblies; No More Soldering or Crimping; Wide Range of Product to Suit Common Applications
2744380 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Contacts | 9 Contact |
| Gender | Male |
| Current Rating | 1 A |
| Number of Rows | 2 Row |
| Number of Positions | 9 Position |
| Current Rating (Max) | 0.1 A |
| Operating Temperature (Max) | 75 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 5 V |
| Voltage Rating | 60 V |
| Show | |
| Size-Length | 58.2 mm |
| Size-Width | 31.5 mm |
| Size-Height | 31.5 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -20℃ ~ 75℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694050 |
| ECCN Code | EAR99 |
