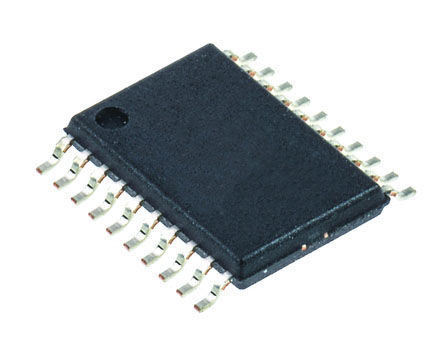

Image is for your reference only,please check specifications for details

TPS70151PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC38812703
Category:
Voltage Regulator
Package:
HTSSOP-20
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator IC Positive Fixed 2 Output 3.3V, 1.8V 500mA, 250mA 20-HTSSOP
Stock Locations:
Availability:
329 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.8

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This LDO TPS70151PWP linear regulator from Texas Instruments gives you control over the voltage levels of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.17@500mA V. This voltage regulation device"s 2 outputs can produce a current up to 0.5|0.25 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 2.7 V that does not exceed 6 V. With a fixed output that has a voltage of 1.8|3.3 V, this is power management at its best. At a load regulation of 1mV(Typ) and line regulation of 0.01%(Typ) your circuit is capable of maintaining a constant voltage level at your output. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. The maximum dropout voltage is 0.275@500mA V. Its polarity is positive. This voltage regulation device has an operating temperature range of -40 °C to 125 °C.

Show

TPS70151PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	HTSSOP-20
Current Rating	2.00 A
Number of Outputs	2 Output
Output Voltage	3.30 V
Output Current	500mA, 250mA
Supply Current	190µA ~ 230µA
Power Dissipation	4115 W
Quiescent Current	0.19 mA
Output Capacitor Type	Ceramic
voltage rating	170 mV
Number of Regulated Outputs	2 Output
Input Voltage (Max)	6 V
Input Voltage (Min)	2.7 V
Output Current (Max)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	2.7V ~ 6V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
