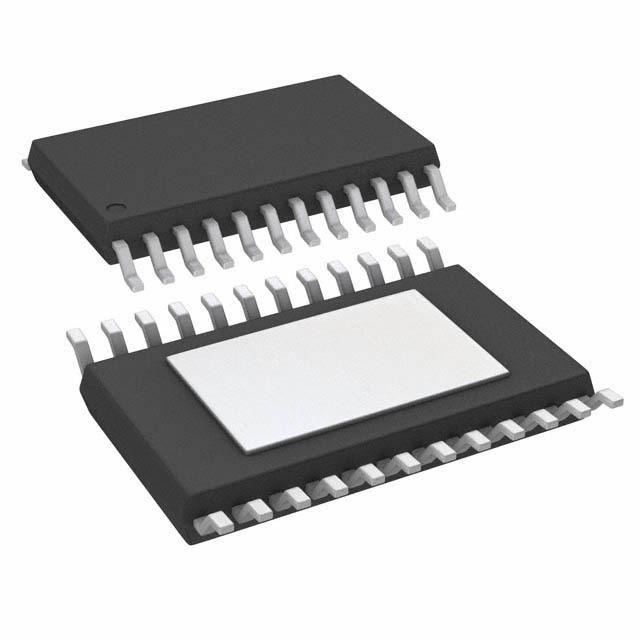

Image is for your reference only,please check specifications for details

TPS70358PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC37826348
Category:
Voltage Regulator
Package:
HTSSOP-24
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator IC Positive Fixed 2 Output 3.3V, 2.5V 1A, 2A 24-HTSSOP
Stock Locations:
Availability:
3 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.84

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS70358PWP is a dual-output low-dropout (LDO) Voltage Regulator designed to provide a complete power management solution for many applications where dual output voltage regulator is required. Easy programmability of the sequencing function makes this family ideal for any TI DSP application with power sequencing requirements. Differentiated features such as accuracy, fast transient response, SVS supervisory circuit, manual reset inputs and enable function, provide a complete system solution. This voltage regulator offers very low-dropout voltage and dual outputs with power up sequence control, designed primarily for DSP applications. This device has low noise output performance without using any added filter bypass capacitors and is designed to have a fast transient response and be stable with 47µF low ESR capacitors. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current.
Dual output voltages for split-supply
Quick output capacitor discharge
Two manual reset inputs
Undervoltage lockout
Thermal shutdown protection
Open drain power good
Open drain power-ON reset with 120ms delay
Ultra low 185µA typical quiescent current
2µA Input current during standby
78µVRMS Without bypass capacitor low noise
2% Accuracy over load and temperature
Green product and no Sb/Br

Show

TPS70358PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	HTSSOP-24
Number of Outputs	2 Output
Output Voltage	3.3 V
Output Current	1A, 2A
Supply Current	250 µA
Number of Channels	1 Channel
Number of Positions	24 Position
Power Dissipation	4.115 W
Quiescent Current	0.185 mA
Output Capacitor Type	Tantalum
voltage rating	160 mV
Number of Regulated Outputs	2 Output
Input Voltage (Max)	6 V
Input Voltage (Min)	2.7 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	4115 mW
Accuracy	±2 %
Input Voltage	2.7V ~ 6V
	Show
Size-Length	7.8 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
