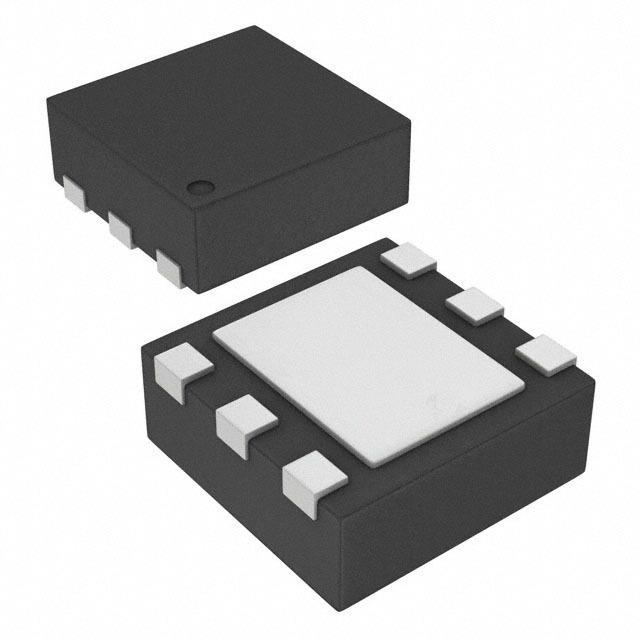

Image is for your reference only,please check specifications for details

TPS70950DRVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC4822400
Category:
Voltage Regulator
Package:
WDFN-6
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS70950DRVT Fixed LDO Voltage Regulator, 2.7V to 30V, 690mV Dropout, 5Vout, 150mAout, WSON-6
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.69

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS70950DRVT is a 5V fixed output low-dropout (LDO) Linear Regulator with reverse current protection designed for power-sensitive applications. A precision bandgap and error amplifier provides 2% accuracy over temperature. Quiescent current of only 1µA makes these devices ideal solutions for battery-powered, always-ON systems that require very little idle-state power dissipation. This device have thermal-shutdown, current-limit and reverse-current protections for added safety. This regulator can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150nA.
Ultralow quiescent current
Supports 200mA peak output
Green product and no Sb/Br

Show

TPS70950DRVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	WDFN-6
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	150 mA
Supply Current	2.05µA ~ 350µA
Number of Positions	6 Position
Quiescent Current	1.00 µA
Output Capacitor Type	Ceramic
voltage rating	690 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	30 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	5 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	30 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
