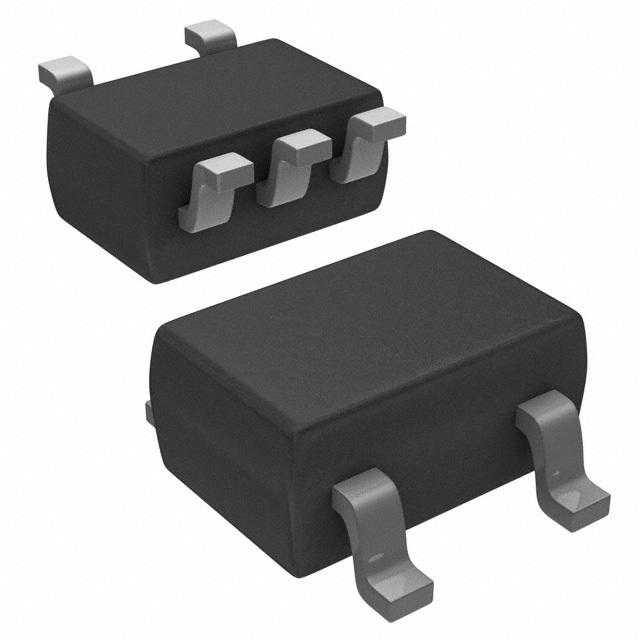

Image is for your reference only,please check specifications for details

TPS71501MDCKREP - TI
Manufacturer:
TI
ManyChip's Part#:
MC17457193
Category:
Voltage Regulator
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS71501MDCKREP LDO Voltage Regulator, Adjustable, 3V to 24V in, 415mV drop, 1.2V to 15V/50mA out, SC-70-5
Stock Locations:
Availability:
301 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.58

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS71501 low-dropout (LDO) voltage regulators offer the benefits of high input voltage, low dropout voltage, low-power operation, and miniaturized packaging. The device, which operates over an input range of 2.5 V to 24 V, is stable with any capacitor (≥0.47 µF). The low dropout voltage and low quiescent current allow operation at extremely low power levels. Therefore, the devices are ideal for powering battery-management ICs. Specifically, because the devices are enabled as soon as the applied voltage reaches the minimum input voltage, the output is quickly available to power continuously operating battery-charging ICs.
The usual PNP pass transistor has been replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the low dropout voltage, typically 415 mV at 50 mA of load current, is directly proportional to the load current. The low quiescent current (3.2 µA typically) is stable over the entire range of output load current (0 mA to 50 mA).

Show

TPS71501MDCKREP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Number of Outputs	1 Output
Output Voltage	1.2V ~ 15V
Output Current	50 mA
Number of Positions	5 Position
Power Dissipation	0.32 W
Quiescent Current	3.00 µA
Output Capacitor Type	Ceramic
voltage rating	415 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	24 V
Input Voltage (Min)	3 V
Output Voltage (Max)	15 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.05 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	320 mW
Accuracy	±6.25 %
Input Voltage	2.5V ~ 24V
	Show
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
