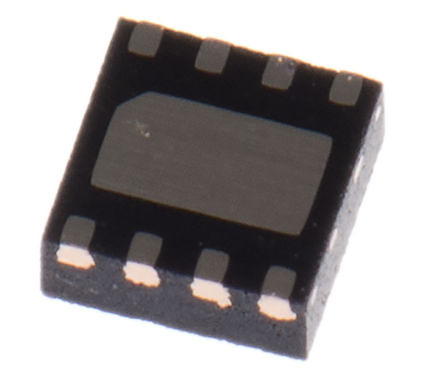

Image is for your reference only,please check specifications for details

TPS715A33DRBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC26183930
Category:
Voltage Regulator
Package:
VSON EP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS715A33DRBT Fixed LDO Voltage Regulator, 2.5V to 24V, 670mV Dropout, 3.3Vout, 80mAout, SON-8
Stock Locations:
Availability:
1,089 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.11

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS715A33DRBT is a 3.3V fixed output low-dropout (LDO) Linear Regulator provide the benefits of high input voltage, low-dropout (LDO) voltage and low-power operation. The device is stable with any capacitor greater than or equal to 0.47µF. A PMOS pass element functions as a low-value resistor. The low-dropout (LDO) voltage, typically 670mV at 80mA of load current, is directly proportional to the load current. The low quiescent current is nearly constant over the entire range of output load current.
3.2µA Low quiescent current at 80mA
Specified current limit
Green product and no Sb/Br

Show

TPS715A33DRBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON EP-8
Power Rating	2.5 W
Number of Outputs	1 Output
Input Voltage (DC)	24.0V (max)
Output Voltage	3.3 V
Output Current	80 mA
Number of Positions	8 Position
Power Dissipation	2500 mW
Quiescent Current	0.0032 mA
Output Capacitor Type	Ceramic
voltage rating	670 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	24 V
Input Voltage (Min)	2.5 V
Output Current (Max)	0.08 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	2500 mW
Accuracy	±4 %
Supply Voltage (Min)	2.5 V
Input Voltage	≤24 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
