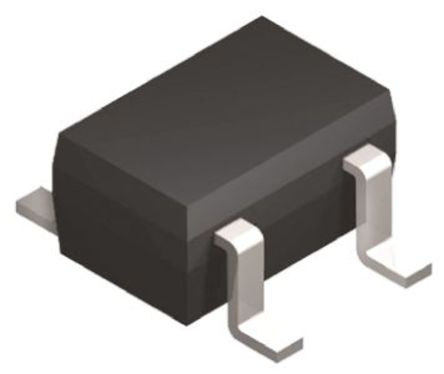

TPS71710DCKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC9352357
Category:
Voltage Regulator
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 150mA, Fixed (1V), High PSRR, Low Quiescent Current, Low Noise LDO Regulator Pos 1V 0.15A 5Pin SC-70 T/R
Stock Locations:
Availability:
79 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS717xx family of low-dropout (LDO), low-power linear regulators offers very high power-supply rejection (PSRR) while maintaining very low 45-µA ground current in an ultra-small, five-pin SOT package. The family uses an advanced BiCMOS process and a PMOS pass device to achieve fast start-up, very low noise, excellent transient response, and excellent PSRR performance. The TPS717xx is stable with a 1-µF ceramic output capacitor and uses a precision voltage reference and feedback loop to achieve a worst-case accuracy of 3% over all load, line, process, and temperature variations. The device family is fully specified from TJ = 40°C to 125°C and is offered in a small SOT (SC70-5) package, a 2-mm × 2-mm WSON-6 package with a thermal pad, and a 1.5-mm × 1.5-mm WSON-6 package, which are ideal for small form factor portable equipment (such as wireless handsets and PDAs).

Show

TPS71710DCKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Power Rating	320 mW
Number of Outputs	1 Output
Input Voltage (DC)	6.50V (max)
Output Voltage	1 V
Output Current	150 mA
Supply Current	100 µA
Number of Positions	5 Position
Power Dissipation	0.32 W
Quiescent Current	45 µA
Output Capacitor Type	Ceramic
voltage rating	170 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Min)	1 V
Output Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	320 mW
Accuracy	3 %
Input Voltage	2.5V ~ 6.5V
	Show
Size-Length	2.15 mm
Size-Width	1.4 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
