Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 5 Pin |

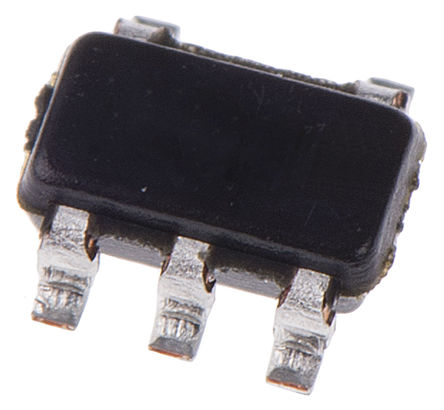

Case/Package | SOT-23-5 |
Power Rating | 0.555 W |
Number of Outputs | 1 Output |
Input Voltage (DC) | 5.50V (max) |
Output Voltage | 1.8 V |
Output Current | 50 mA |
Supply Current | 120µA ~ 550µA |
Number of Positions | 5 Position |
Power Dissipation | 555 mW |
Quiescent Current | 0.085 mA |
Output Capacitor Type | Ceramic |
voltage rating | 50 mV |
Number of Regulated Outputs | 1 Output |
Input Voltage (Max) | 5.5 V |
Input Voltage (Min) | 1.8 V |
Output Voltage (Min) | 1.8 V |
Output Current (Max) | 0.05 A |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Power Dissipation (Max) | 555 mW |
Accuracy | ±3 % |
Input Voltage | 5.5V ~ 1.8V |
Show | |
Size-Length | 2.9 mm |
Size-Width | 1.6 mm |
Size-Height | 1.15 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | EAR99 |
