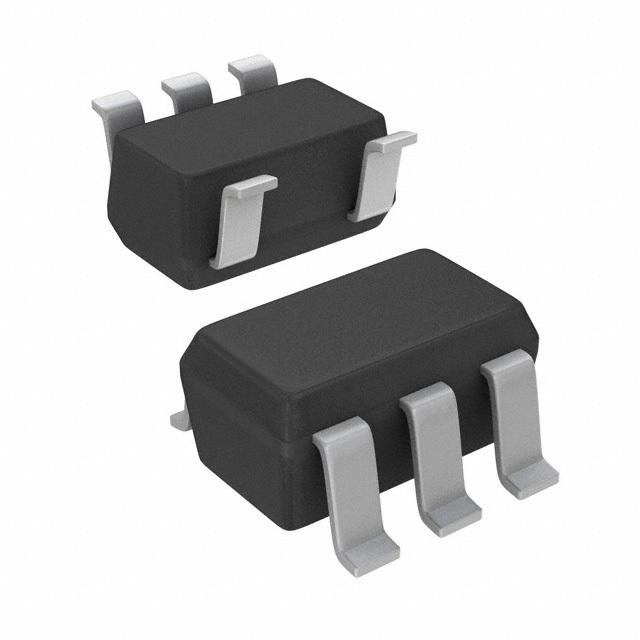

Image is for your reference only,please check specifications for details

TPS72301DBVRG4 - TI
Manufacturer:
TI
ManyChip's Part#:
MC79815152
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS72301DBVRG4 LDO Voltage Regulator, Adjustable, -10V to -2.7V in, 280mV drop, -1.2V to -10V/200mA out, SOT-23-5
Stock Locations:
Availability:
303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.71

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TPS723xx family of low-dropout (LDO) negative voltage regulators offers an ideal combination of features to support low noise applications. The devices are capable of operating with input voltages from −10 V to −2.7 V, and supporting outputs from −10 V to −1.2 V. These regulators are stable with small, low-cost ceramic capacitors, and include enable (EN) and noise reduction (NR) functions.
FEATURES
Ultralow Noise: 60-µVRMS Typical
High PSRR: 65-dB Typical at 1 kHz
Low Dropout Voltage: 280-mV Typical at 200 mA, 2.5 V
Available in −2.5 V, and Adjustable (−1.2 V to −10 V) Versions
Stable With a 2.2-µF Ceramic Output Capacitor
Less Than 2-µA Typical Quiescent Current in Shutdown Mode
2% Overall Accuracy (Line, Load, Temperature)
Thermal and Overcurrent Protection
5-Pin SOT-23 (DBV) Package
−40°C to 125°C Operating Junction Temperature Range
APPLICATIONS
Optical Drives
Optical Networking
Noise Sensitive Circuitry
GaAs FET Gate Bias
Video Amplifiers

Show

TPS72301DBVRG4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Output Voltage	-10.0 V (max), -1.20 V (min)
Output Current	200 mA
Power Dissipation	0.56 W
Quiescent Current	130 µA
Output Capacitor Type	Ceramic
voltage rating	280 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Current (Max)	0.2 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
