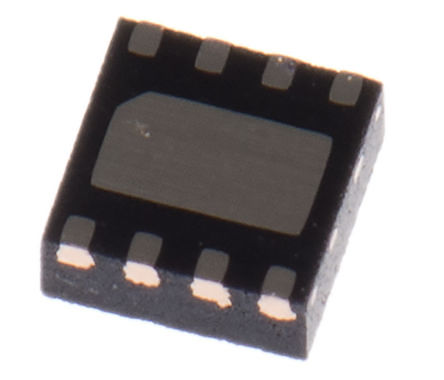

Image is for your reference only,please check specifications for details

TPS73512DRBT - TI
Manufacturer:
TI
ManyChip's Part#:
MC29680761
Category:
Voltage Regulator
Package:
VSON-8
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 500mA, Fixed (1.2V), Low Quiescent Current, Low Noise, High PSRR LDO Regulator Pos 1.2V 0.5A 8Pin VSON EP T/R
Stock Locations:
Availability:
262 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.9

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

If you need to maintain a steady voltage on your circuit, then this LDO TPS73512DRBT linear regulator from Texas Instruments is perfect for you! Its typical dropout voltage at current is 0.28@500mA V. It has an overall accuracy of ±1 %. This voltage regulation device"s single output can produce a current up to 0.5 A. By only needing an input voltage of 2.7 V with a maximum of 6.5 V, this is the best way to control the power in your circuit. With a fixed output that has a voltage of 1.2 V, this is power management at its best. Users like the load regulation of 0.005%/mA(Typ) and line regulation of 0.02%/V(Typ). This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Show

TPS73512DRBT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON-8
Number of Outputs	1 Output
Output Voltage	1.2 V
Output Current	500 mA
Number of Positions	8 Position
Power Dissipation	1540 W
Quiescent Current	46 µA
Output Capacitor Type	Ceramic
voltage rating	280 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	1.72 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Input Voltage	2.7V ~ 6.5V
	Show
Size-Length	3.15 mm
Size-Width	3.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
