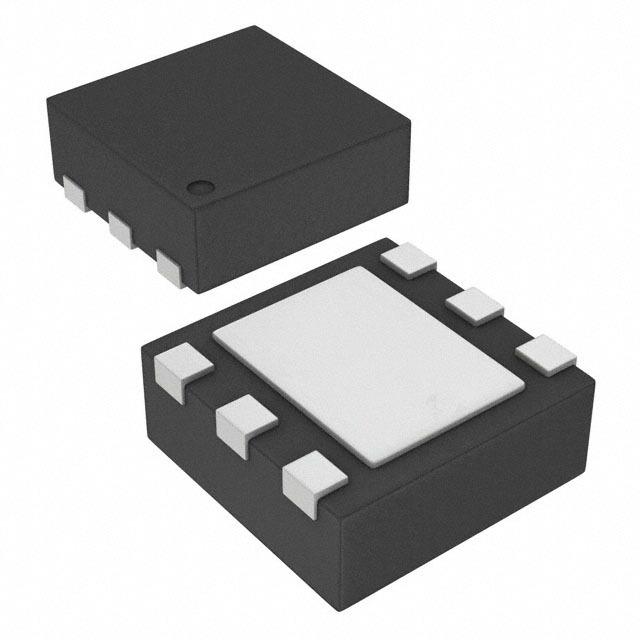

Image is for your reference only,please check specifications for details
- TPS73733DRVT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC45451790
-
Category:Voltage Regulator
-
Package:WDFN-6
-
Datasheet:Datasheet 3D Model
-
Description:Fixed LDO Voltage Regulator, 2.2V to 5.5V, 130mV Dropout, 3.3Vout, 1Aout, SON-6
-
Stock Locations:
-
Availability:227 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.92
Updated at 25/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS737xx family of linear low-dropout (LDO) voltage regulators uses an NMOS pass element in a voltage-follower configuration. This topology is relatively insensitive to output capacitor value and ESR, allowing a wide variety of load configurations. Load transient response is excellent, even with a small 1-µF ceramic output capacitor. The NMOS topology also allows very low dropout.
- The TPS737xx family uses an advanced BiCMOS process to yield high precision while delivering very low dropout voltages and low ground pin current. Current consumption, when not enabled, is less than 20 nA and ideal for portable applications. These devices are protected by thermal shutdown and foldback current limit.
- For applications that require higher output voltage accuracy, consider TIs TPS7A37xx family of 1% overall accuracy, 1-A low-dropout voltage regulators.
TPS73733DRVT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | WDFN-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 1 A |
| Supply Current | 400µA ~ 1.3mA |
| Quiescent Current | 400 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 130 mV |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.2 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | 2.2V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
