Description

The TPS75003RHLT is an Integrated Triple Supply Power Management IC for FPGA, DSP and other multi-supply applications. The device has been tested with and meets all of the Xilinx Spartan-3, Spartan-3E and Spartan-3L start-up profile requirements, including monotonic voltage ramp and minimum voltage rail rise time. Independent Enables for each output allow sequencing to minimize demand on the power supply at start-up. Soft-start on each supply limits inrush current during start-up. Two integrated buck controllers allow efficient, cost-effective voltage conversion for both low and high current supplies such as core and I/O. A 300mA LDO is integrated to provide an auxiliary rail such as VCCAUX on the Xilinx Spartan-3 FPGA. All three supply voltages are offered in user-programmable options for maximum flexibility.
Two 95% efficient, 3A buck controllers and one 300mA LDO
Tested and endorsed by Xilinx for powering the Spartan-3, Spartan-3E and Spartan-3L FPGAs
Adjustable (1.2 to 6.5V for bucks, 1.0 to 6.5V for LDO) output voltages on all channels
2.2 to 6.5V Input voltage range
Independent soft-start for each supply
Independent enable for each supply for flexible sequencing
LDO stable with 2.2µF ceramic output capacitor
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

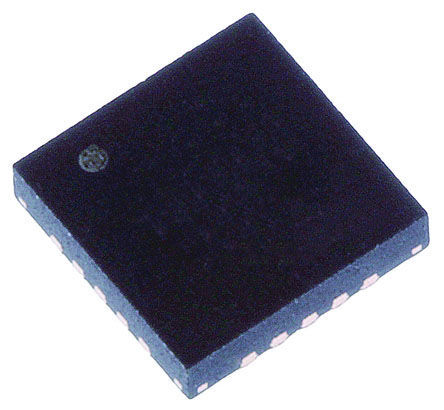

TPS75003RHLT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Supply Voltage (DC)	6.50 V
Number of Outputs	1 Output
Output Voltage	6.5 V
Output Current	3 A
Supply Current	75 µA
Number of Positions	20 Position
Power Dissipation	2.27 W
Quiescent Current	75.0 µA
Number of Regulated Outputs	3 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	2.2 V
Output Voltage (Max)	6.5 V
Output Current (Max)	3 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	6.5 V
	Show
Size-Length	4.65 mm
Size-Width	3.65 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
