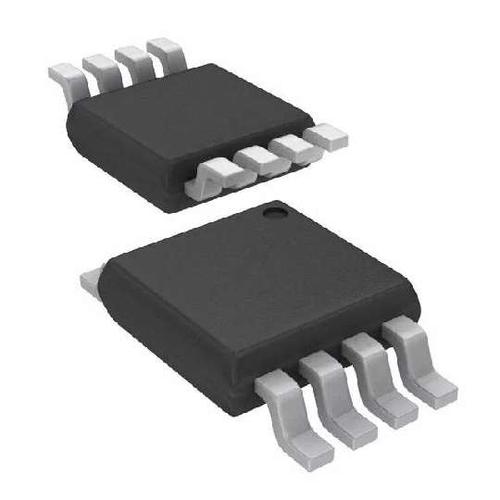

Image is for your reference only,please check specifications for details

TPS77301DGK - TI
Manufacturer:
TI
ManyChip's Part#:
MC7903329
Category:
Voltage Regulator
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS77301DGK LDO Voltage Regulator, Adjustable, 2.7V to 10V in, 200mV drop, 1.5V to 5.5V/250mA out, VSSOP-8
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS77301DGK is a low-dropout Regulator with integrated power-ON reset and power good (PG) function. This device is capable of supplying 250mA of output current with a dropout of 200mV. Quiescent current is 92µA at full load dropping down to 1µA when device is disabled. This device is optimized to be stable with a wide range of output capacitors including low ESR ceramic or low capacitance tantalum capacitors. This device has extremely low noise output performance without using any added filter capacitors. It is designed to have fast transient response for larger load current changes. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading. These two key specifications yield a significant improvement in operating life for battery-powered systems.
Fast transient response
Open drain power-ON reset with 220ms delay
Ultralow 92µA typical quiescent current
Green product and no Sb/Br

Show

TPS77301DGK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Number of Outputs	1 Output
Input Voltage (DC)	10.0V (max)
Output Voltage	1.5V ~ 5.5V
Output Current	250 mA
Number of Positions	8 Position
Power Dissipation	0.412 W
Quiescent Current	90.0 µA
Output Capacitor Type	Tantalum
voltage rating	200 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.5 V
Output Current (Max)	0.25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	412 mW
Accuracy	2 %
Input Voltage	2.7V ~ 10V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.97 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
