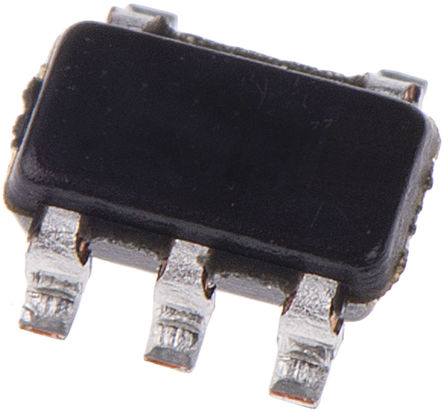

Image is for your reference only,please check specifications for details

TPS78227DDCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC6789840
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Fixed Output LDO, 150mA, 0.5µA Quiescent Current LDO Regulator Pos 2.7V 0.15A 5Pin TSOT-23 T/R
Stock Locations:
Availability:
197 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.99

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS782 family of low-dropout regulators (LDOs) offers the benefits of ultra-low power and miniaturized packaging.
This LDO is designed specifically for battery-powered applications where ultra-low quiescent current is a critical parameter. The TPS782, with ultra-low IQ (500 nA), is ideal for microprocessors, microcontrollers, and other battery-powered applications.
The ultra-low power and miniaturized packaging allow designers to customize power consumption for specific applications.
The TPS782 family is designed to be compatible with the TI MSP430 and other similar products. The enable pin (EN) is compatible with standard CMOS logic. This device allows for minimal board space because of miniaturized packaging and a potentially small output capacitor. The TPS782 series also features thermal shutdown and current limit to protect the device during fault conditions. All packages have an operating temperature range of TJ = 40°C to 125°C.
For high-performance applications that require a dual-level voltage option, consider the TPS780 series, with an IQ of 500 nA and dynamic voltage scaling.

Show

TPS78227DDCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Power Rating	500 mW
Number of Outputs	1 Output
Output Voltage	2.7 V
Output Current	150 mA
Number of Positions	5 Position
Power Dissipation	0.5 W
Quiescent Current	0.0005 mA
Output Capacitor Type	Ceramic
voltage rating	0.13V @150mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Output Voltage (Min)	2.7 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Accuracy	±1 %
Input Voltage	≤5.5 V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
