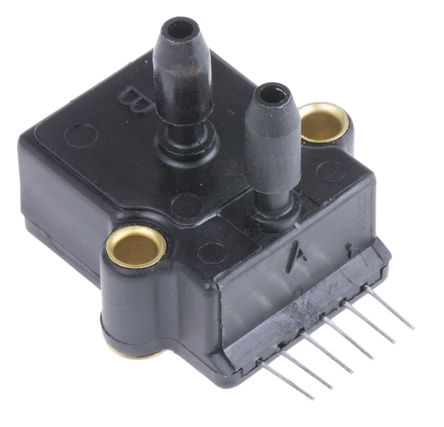

- SCX01DN - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC51198687
-
Category:Pressure Sensor
-
Package:SIP-6
-
Datasheet:Datasheet 3D Model
-
Description:Peizoresistive Sensor, Differential, 0Psi Min, 1Psi Max, 0-18mV, Rectangular, Through Hole Mount
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SCX Series sensors provide a very cost-effective solution for pressure applications that require operation over wide temperature range. These internally calibrated and temperature compensated sensors were specifically designed to provide an accurate and stable output over a 0°C to +70°C (32°F to +158°F) temperature range. This Series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like. Devices are available to measure absolute, differential and gage pressures from 1 psi (SCX01) up to 150 psi (SCX150). The Absolute (A in model number) devices have an internal vacuum reference and an output voltage proportional to absolute pressure. The Differential (D in model number) devices allow application of pressure to either side of the pressure-sensing diaphragm and can be used for gage or differential measurements. The SCX Series devices feature an integrated circuit (IC) sensor element and laser trimmed thick film ceramic housed in a compact solvent resistant case. This package provides excellent corrosion resistance and provides isolation to external packaging stresses. The package has convenient mounting holes and pressure ports for ease of use with standard plastic tubing for pressure connection. If the application requires extended temperature range operation, beyond 0°C to +70°C (+32°F to +158°F), two pins which provide an output voltage proportional to temperature are available for use with external circuitry. The 100 μS response time makes this series an excellent choice for computer peripherals and pneumatic control applications. The output of the bridge is ratiometric to the supply voltage. Operation from any DC supply voltage up to 20 VDC is acceptable.
- **Features:
- **
- * Precision Temperature Compensation
- * Calibrated Zero and Span
- * Small Size
- * Low Noise
- * High Accuracy
- * High Impedance for Low Power Applications
- **Typical Applications:**
- * Medical Equipment
- * Barometry
- * Computer Peripherals
- * Pneumatic Controls
- * HVAC
SCX01DN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | SIP-6 |
| Supply Voltage (DC) | 20.0V (max) |
| Voltage Rating (DC) | 20.0 V |
| Output Voltage | ≤18.0 mV |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Voltage Rating | 20 V |
| Supply Voltage | 20 V |
| Show | |
| Size-Height | 27.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 9026204000 |
| ECCN Code | EAR99 |
