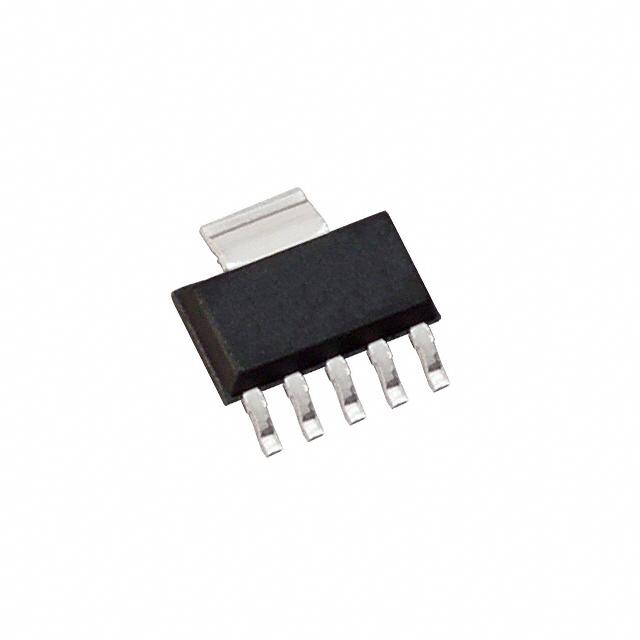

Image is for your reference only,please check specifications for details

TPS79633DCQR - TI
Manufacturer:
TI
ManyChip's Part#:
MC2307221
Category:
Voltage Regulator
Package:
SOT-223-6
Datasheet:
Datasheet 3D Model
Description:
Single Channel LDO Single Output LDO, 1A, Fixed(3.3V), Low Noise, High PSRR LDO Regulator Pos 3.3V 1A 6Pin(5+Tab) SOT-223 T/R
Stock Locations:
Availability:
837 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This LDO TPS79633DCQR linear regulator from Texas Instruments is used to manipulate the voltage level of your circuit. It has an overall accuracy of ±2 %. Its typical dropout voltage at current is 0.22@1A V. This voltage regulation device"s single output can produce a current up to 1 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.7 V and no higher than 5.5 V. With a fixed output that has a voltage of 3.3 V, this is power management at its best. A load regulation of 5mV(Typ) and line regulation of 0.05%/V(Typ) is necessary for providing a constant voltage level at your output. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. The maximum dropout voltage is 0.325@1A V. This voltage regulation device has an operating temperature range of -40 °C to 125 °C. Its polarity is positive.

Show

TPS79633DCQR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-223-6
Number of Outputs	1 Output
Input Voltage (DC)	5.50V (max)
Output Voltage	3.3 V
Output Current	1 A
Supply Current	385 µA
Number of Positions	6 Position
Quiescent Current	260 µA
Output Capacitor Type	Ceramic
voltage rating	220 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Min)	3.3 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Input Voltage	≤5.5 V
	Show
Size-Width	3.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
