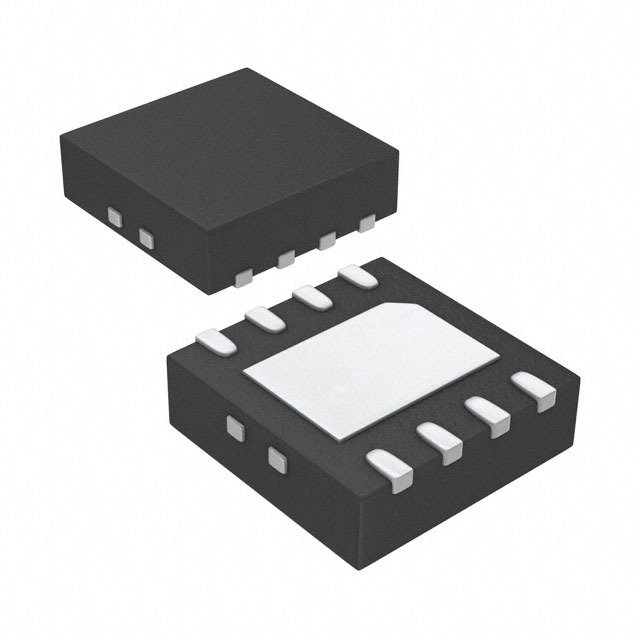

Image is for your reference only,please check specifications for details
- TPS7A1901DRBR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC25755782
-
Category:Voltage Regulator
-
Package:VSON EP-8
-
Datasheet:Datasheet 3D Model
-
Description:40V, 450mA, Low IQ, Low-Dropout Voltage Regulator with Power Good 8-SON -40℃ to 125℃
-
Stock Locations:
-
Availability:1,500 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 14.97
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS7A19 is a low-dropout linear regulator (LDO) with a wide input voltage (VIN) range up to 40 V, capable of sourcing high output current (IOUT) up to 450 mA. This voltage regulator is ideal for generating a low-voltage supply from wide input-voltage rails. Not only does the TPS7A19 supply a well-regulated voltage rail, but the device also withstands and maintains regulation during voltage transients by acting as a simple surge protection circuit.
- The TPS7A19 consumes only 15 µA of quiescent current (IQ) at light loads, thereby lowering the power consumption for always-on or battery-powered applications.
- The TPS7A19 features integrated thermal shutdown and overcurrent protection. The TPS7A19 also offers a power good output (PG) with a programmable delay that indicates when the output voltage is in regulation. This feature is useful for power-rail sequencing functions.
- This LDO is available in a small, 3-mm × 3-mm, thermally-enhanced, 8-pin SON package.
TPS7A1901DRBR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSON EP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.5V ~ 18V |
| Output Current | 450 mA |
| voltage rating | 0.24V @400mA,0.16V @200mA |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 4 V |
| Output Current (Max) | 0.45 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 4V ~ 40V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ECCN Code | EAR99 |
