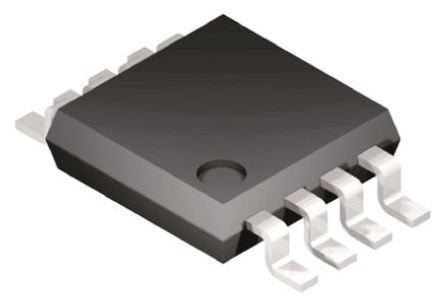

Image is for your reference only,please check specifications for details
- TPS7A3401DGNT - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC59048487
-
Category:Voltage Regulator
-
Package:PowerPad-MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:LDO Voltage Regulator, Adjustable, -20V to -3V in, 216mV drop, -1.18V to -20V/200mA out, MSOP-8
-
Stock Locations:
-
Availability:222 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.4
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC Negative Adjustable 1 Output 200mA 8-MSOP-PowerPad
TPS7A3401DGNT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PowerPad-MSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | -20.0 V (max), -1.18 V (min) |
| Output Current | 200 mA |
| Supply Current | 100µA ~ 950µA |
| Number of Positions | 8 Position |
| Quiescent Current | 50.0 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 216 mV |
| Number of Regulated Outputs | 1 Output |
| Output Current (Max) | 200 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1.5 % |
| Show | |
| Size-Length | 3.1 mm |
| Size-Width | 3.10 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
