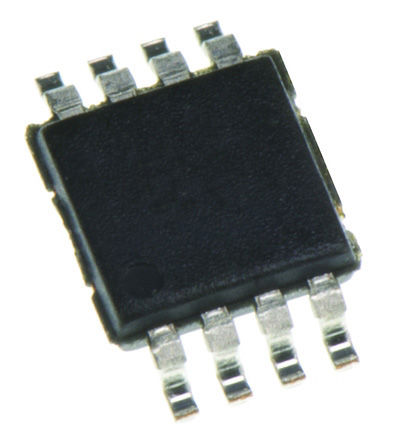

TPS7A4201DGNT - TI
Manufacturer:
TI
ManyChip's Part#:
MC66144772
Category:
Voltage Regulator
Package:
PowerPad-MSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS7A4201DGNT LDO Voltage Regulator, Adjustable, 7V to 28V in, 290mV drop, 1.175V to 26V/50mA out, SOP-8
Stock Locations:
Availability:
2,194 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.95

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS7A4201DGNT is a high-voltage-tolerant Linear Regulator able to withstand continuous DC or transient input voltages of up to 28V. The TPS7A4201 is stable with any output capacitance greater than 4.7µF and any input capacitance greater than 1µF. Therefore, implementations of this device require minimal board space and a potentially small output capacitor. In addition, the device offers an enable pin (EN) compatible with standard CMOS logic to enable a low-current shutdown mode. The device has an internal thermal shutdown and current limiting to protect the system during fault conditions. In addition, the device is ideal for generating a low-voltage supply from intermediate voltage rails in telecom and industrial applications, not only it can supply a well-regulated voltage rail, but it can also withstand and maintain regulation during fast voltage transients. These features translate to simpler and more electrical surge-protection circuitry for a wide range of applications.
Built-in current-limit and thermal shutdown protection
Use an innovative BiCMOS process technology
2.5% Accuracy over line, load and temperature
Green product and no Sb/Br

Show

TPS7A4201DGNT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerPad-MSOP-8
Number of Outputs	1 Output
Output Voltage	1.161V ~ 26V
Output Current	50 mA
Supply Current	65 µA
Number of Positions	8 Position
Power Dissipation	1.83 W
Quiescent Current	0.025 mA
Output Capacitor Type	Ceramic
voltage rating	290 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	28 V
Input Voltage (Min)	7 V
Output Voltage (Max)	26 V
Output Voltage (Min)	1.175 V
Output Current (Max)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1830 mW
Accuracy	±1 %
Input Voltage	7V ~ 28V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
