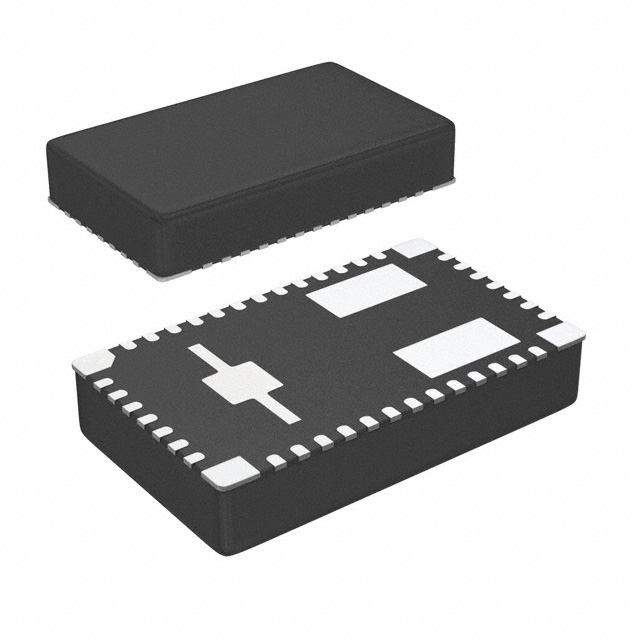

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Complete Integrated Power Solution Allows Small Footprint, Low-Profile Design * Efficiencies Up To 96% * Wide-Output Voltage Adjust 0.6 V to 5.5 V, with 1% Reference Accuracy * Supports Parallel Operation for Higher Current * Optional Split Power Rail allows input voltage down to 1.6 V * Adjustable Switching Frequency (250 kHz to 780 kHz) * Synchronizes to an External Clock * Adjustable Slow-Start * Output Voltage Sequencing and Tracking * Power Good Output * Programmable Undervoltage Lockout (UVLO) * Output Overcurrent Protection (Hiccup Mode) * Over-Temperature Protection * Pre-bias Output Start-up * Operating Temperature Range: –40°C to 85°C * Enhanced Thermal Performance: 13°C/W * Meets EN55022 Class B Emissions
TPS84621RUQR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 47 Pin |
| Case/Package | QFN-47 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 5.5V |
| Output Current | 6 A |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 250 kHz |
| Thermal Shutdown | Yes |
| Topology | Buck |
| Input Voltage (Max) | 14.5 V |
| Input Voltage (Min) | 4.5 V |
| Output Current (Max) | 6 A |
| Input Power (Max) | 33 W |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 14.5V |
| Show | |
| Size-Height | 2.85 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
