TS12A12511DGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC10157000
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:

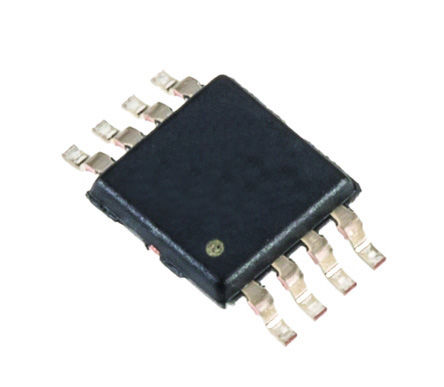

TEXAS INSTRUMENTS TS12A12511DGKR Analogue Switch, Single Channel, SPDT, 1Channels, 8Ω, 2.7V to 12V, ± 2.7V to ± 6V, VSSOP
Stock Locations:
Availability:
39 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.94

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS12A12511DGKR is a single-pole double-throw (SPDT) single-channel Analog Switch with negative signaling capability. It can pass signals with swings of 0 to 12 or -6 to 6V. This switch conducts equally well in both directions when it is on. The device also offers a low on-state resistance of 5R (typical), which is matched to within 1R between channels. The maximum current consumption is <1µA and -3 dB bandwidth is >93MHz. The TS12A12511 exhibits break-before-make switching action, preventing momentary shorting when switching channels.
Rail-to-rail analog signal handling
Fast TON and TOFF times
Latch-up performance exceeds 100mA Per JESD 78, Class II
ESD performance tested per JESD 22
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS12A12511DGKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	2.70V ~ 12.0V
Number of Outputs	2 Output
Supply Current	70 nA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Bandwidth	93.0 MHz
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	93 MHz
Supply Voltage (Max)	12 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
