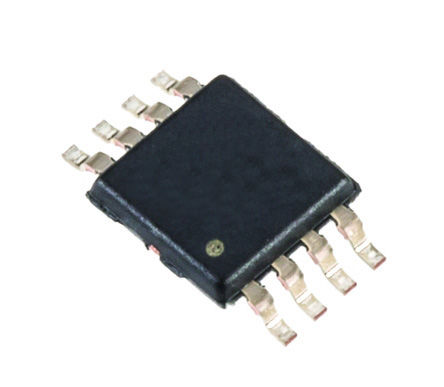

TS5A2066DCUR - TI
Manufacturer:
TI
ManyChip's Part#:
MC14883546
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS5A2066DCUR Analog Switch, SPST, 2Channels, 15Ω, 1.65V to 5.5V, VSSOP, 8Pins
Stock Locations:
Availability:
1,275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS5A2066DCUR is a single-pole single-throw (SPST) dual Analog Switch designed to operate from 1.65 to 5.5V. This device can handle both digital and analog signals and signals up to V+ can be transmitted in either direction.
Low on-state resistance
Low charge injection
Low Total Harmonic Distortion (THD)
Latch-up performance exceeds 100mA Per JESD 78, Class II
ESD performance tested per JESD 22
Green product and no Sb/Br

Show

TS5A2066DCUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Number of Outputs	2 Output
Contacts Type	SPST
Supply Current	100 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Number of Bits	1 Bit
Bandwidth	300 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	300 MHz
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.1 mm
Size-Width	2.4 mm
Size-Height	0.8 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
