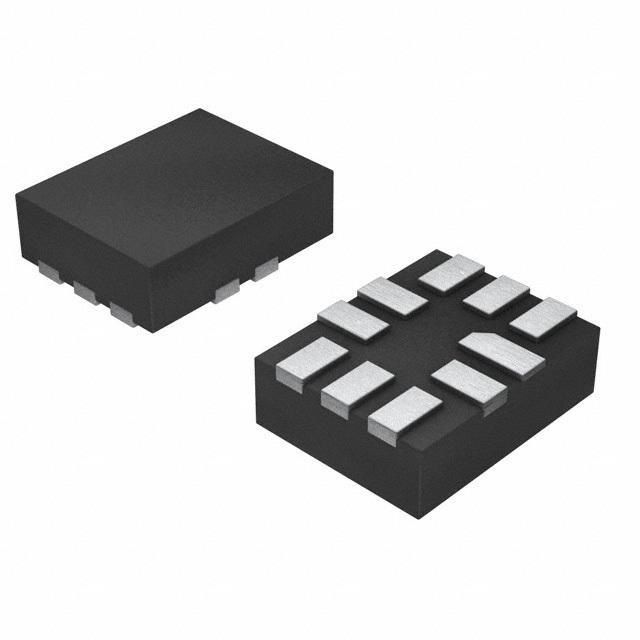

- TS5USBA224RSWR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC1755720
-
Category:USB Chip, USB Interface IC
-
Package:UQFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Высокоскоростные (480 Мбит/с) USB 2.0 и аудио переключатели с поддержкой отрицательных сигналов, корпус 10-UQFN, диапазон температур от -40 °C до 85 °C.
-
Stock Locations:
-
Availability:318 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.94
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- TS5USBA224 — это мультиплексор с двумя полюсами и двумя положениями (DPDT), включающий аудио-коммутатор с низким уровнем искажений и коммутатор USB 2.0 высокой скорости (480 Мбит/с) в одном корпусе. Такая конфигурация позволяет системному дизайнеру использовать один общий разъём для аудиосигналов и данных USB. Аудио-коммутатор спроектирован таким образом, чтобы допускать колебания аудиосигналов ниже уровня земли, что делает возможной данную конфигурацию общего разъёма.
- Питание TS5USBA224 осуществляется через вход VAUDIO. При значении ASEL=Высокий выбирается аудио-канал независимо от логического уровня на VBUS. Если ASEL=Низкий и VBUS=Высокий, то выбирается USB-канал. В противном случае, при ASEL=Низкий и VBUS=Низкий, также выбирается аудио-канал.
- Кроме того, TS5USBA224 оснащён шунтирующими резисторами на аудио-канале, что позволяет уменьшить щелчки и хлопки, которые могут слышаться при переключении аудио-коммутаторов.
TS5USBA224RSWR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | UQFN-10 |
| Supply Voltage (DC) | 2.70V ~ 5.50V |
| Supply Current | 6 µA |
| Number of Channels | 1 Channel |
| Number of Positions | 10 Position |
| Data Rate | 480 Mbps |
| Bandwidth | 650 MHz |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 650 MHz |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 0 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
