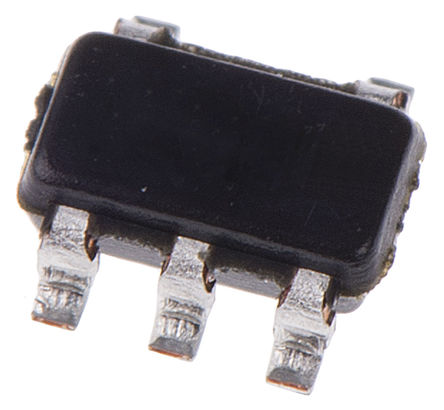

Image is for your reference only,please check specifications for details

TSC101CILT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC7710163
Category:
Amplifier, Buffer IC
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TSC101 Series 24V 450kHz Single High-Side Current Sense Amplifier - SOT 23-5
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.3

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSC101 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is internally fixed.
Wide input common-mode voltage range, low quiescent current, and tiny SOT23 packaging enable use in a wide variety of applications.
The input common-mode and power supply voltages are independent. The common-mode voltage can range from 2.8 to 30 V in operating conditions and up to 60 V in absolute maximum rating conditions.
The current consumption below 300 μA and the wide supply voltage range enable the power supply to be connected to either side of the current measurement shunt with minimal error.
**Key Features**
Independent supply and input common-mode voltages
Wide common-mode operating range: 2.8 to 30 V
Wide common-mode surviving range: -0.3 to 60 V (load-dump)
Wide supply voltage range: 4 to 24 V
Low current consumption: ICC max = 300 μA
Internally fixed gain: 20 V/V, 50 V/V or 100 V/V
Buffered output
