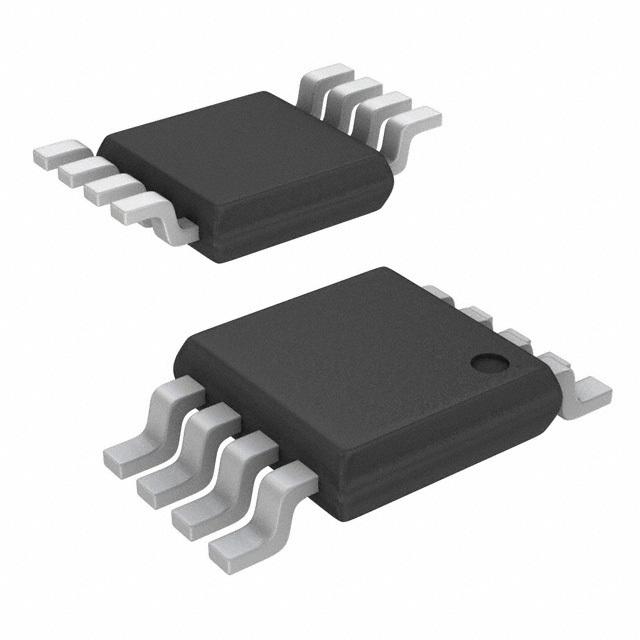

Image is for your reference only,please check specifications for details
- TSV912AIST - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC56219500
-
Category:Amplifier, Buffer IC
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:TSV912A Series 5.5V 8MHz Rail-to-Rail Input/Output Operational Amp - MSOP-8
-
Stock Locations:
-
Availability:9,180 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.41
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The TSV911/2/4 family of single, dual & quad operational amplifiers offers low voltage operation and rail-to-rail input and output.
- Features
- ■ Rail-to-rail input and output
- ■ Wide bandwidth
- ■ Low power consumption: 1.1mA max.
- ■ Unity gain stability
- ■ High output current: 35mA
- ■ Operating from 2.5V to 5.5V
- ■ Low input bias current
- ■ ESD Internal protection≥5kV
- ■ Latch-up immunity
- Applications
- ● Battery-powered applications
- ● Portable devices
- ● Signal conditioning
- ● Active filtering
- ● Medical instrumentation
TSV912AIST Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Output Current | 35mA @5V |
| Supply Current | 820 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 62 dB |
| Slew Rate | 4.50 V/μs |
| Gain Bandwidth Product | 8 MHz |
| Input Offset Voltage | 1.5 mV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 8 MHz |
| Minimum CMRR Range | 62 dB |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.5 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
