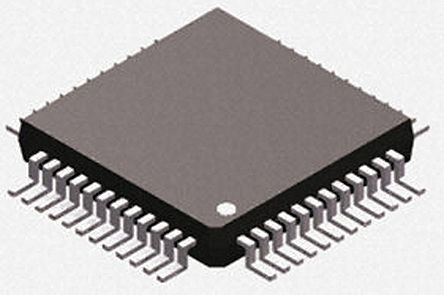

Image is for your reference only,please check specifications for details

TUSB8020BPHP - TI
Manufacturer:
TI
ManyChip's Part#:
MC11173100
Category:
USB Chip, USB Interface IC
Package:
HTQFP-48
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TUSB8020BPHP USB Interface, USB Hub, USB 2.0, 3.0, 990mV, 1.26V, HTQFP, 48Pins
Stock Locations:
Availability:
240 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TUSB8020BPHP is a 2-port USB 3.0 Hub provides simultaneous SuperSpeed USB and high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed or low-speed connections on the downstream ports. When the upstream port is connected to an electrical environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is disabled on the downstream ports. When the upstream port is connected to an electrical environment that only supports full-speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports. An individually port power controlled hub switches power on or off to each downstream port as requested by the USB host. Also when an individually port power controlled hub senses an overcurrent event, only power to the affected downstream port will be switched off.
Multi-transaction translator (MTT) hub: two transaction translators
Four asynchronous endpoint buffers per transaction translator
Supports battery charging
Provides 128-bit universally unique identifier (UUID)
Supports on-board and in-system OTP/EEPROM programming through the USB 2.0 upstream port
Single clock input, 24MHz crystal or oscillator
No special driver requirements - works seamlessly on any operating system with USB stack support
Green product and no Sb/Br

Show

TUSB8020BPHP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	48 Pin
Case/Package	HTQFP-48
Supply Voltage (DC)	1.10 V, 3.30 V
Number of Positions	48 Position
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	1.1V, 3.3V
Supply Voltage (Max)	1.26 V
Supply Voltage (Min)	3 V
	Show
Size-Length	7.2 mm
Size-Width	7.2 mm
Size-Height	1.05 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
