Description

* Two 11-Bit 60-MSPS Analog-to-Digital (A/D) Converters With Analog Preprocessors (Clamp/AGC) * Fixed RGB-to-YUV Color Space Conversion * Robust Sync Detection for Weak and Noisy Signals as Well as VCR * Supports NTSC (J, M, 4.43), PAL (B, D, G, H, I, M, N, Nc, 60) and SECAM (B, D, G, K, K1, L) CVBS, S-Video * Supports Component Standards 480i, 576i, 480p, and 576p * Supports ITU-R BT.601 Pixel Sampling Frequencies * Supports 3D Y/C Separation, or 2D 5-Line (5H) Adaptive Comb and Chroma Trap Filter for Both PAL and NTSC Signals * Concurrent Temporal, Frame Recursive, Noise Reduction (3DNR) * IF Compensation * Line-Based Time Base Correction (TBC) * Fast Switch 4x Oversampled Input for Digital RGB Overlay Switching Between Any CVBS, S-Video, or Component Video Input * SCART 4x Oversampled Fast Switching Between Component RGB Input and CBVS Input * Analog Video Output * Chrominance Processor * Luminance Processor * Clock/Timing Processor and Power-Down Control * Output Formatter Supports Both ITU-R BT.656 (Embedded Syncs) and ITU-R BT.601 (4:2:2 With Discrete Syncs) * I2C Host Port Interface * VBI Data Processor * "Blue" Screen (Programmable Color) Output * Macrovision™ Copy Protection Detection Circuit (Types 1, 2, and 3) on Both Interlaced and Progressive Signals * Applications * Digital TV * LCD TV/Monitors * DVD-R * PVR * PC Video Cards * Video Capture/Video Editing * Video Conferencing

Show

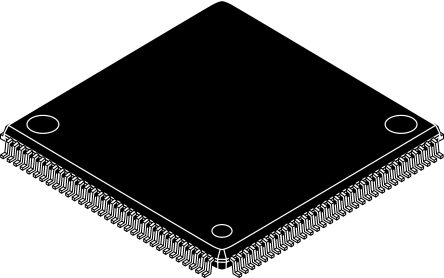

TVP5160PNP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	128 Pin
Case/Package	TQFP-128
Supply Voltage (DC)	3.00V (min)
Supply Current	205 mA
Number of Channels	2 Channel
Number of Positions	128 Position
Number of Bits	10 Bit
Power Dissipation	1085 mW
Sample Rate	60.0 MHz
Number of ADCs	2 ADC
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1085 mW
Number of Input Channels	2 Channel
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	14 mm
Size-Width	14 mm
Size-Height	1 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
