Description
- DESCRIPTION/ORDERING INFORMATION
- This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.
- FEATURES
- • 3-Terminal Regulators
- • Available in fixed 5V/8V/10V/12V/15V/24V options
- • Output Current up to 1.5 A
- • Internal Thermal-Overload Protection
- • High Power-Dissipation Capability
- • Internal Short-Circuit Current Limiting
- • Output Transistor Safe-Area Compensation

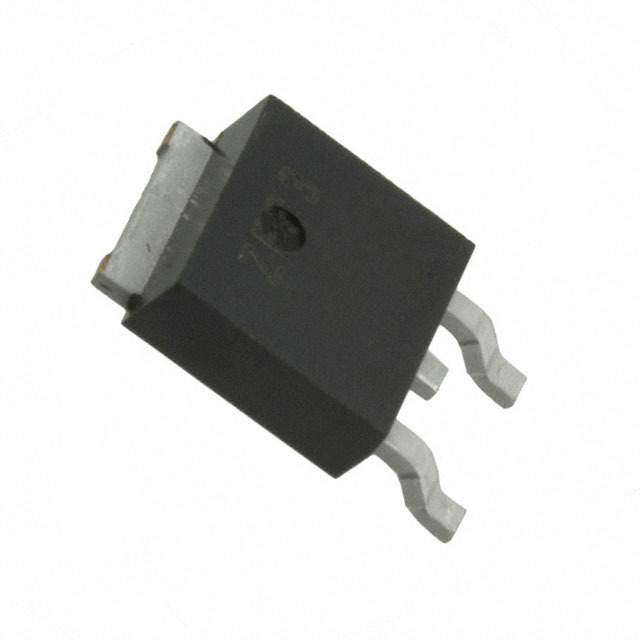

UA7805CKTER Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | TO-252-4 |
| Supply Voltage (DC) | 25.0 V |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 25.0V (max) |
| Output Voltage | 5 V |
| Output Current | 1.5 A |
| Quiescent Current | 4.30 mA |
| Output Capacitor Type | Capacitor Free |
| voltage rating | 2.00 V |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 25 V |
| Input Voltage (Min) | 7 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Input Voltage | 7V ~ 25V |
| Show | |
| Size-Length | 9.4 mm |
| Size-Width | 8 mm |
| Size-Height | 1.91 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
