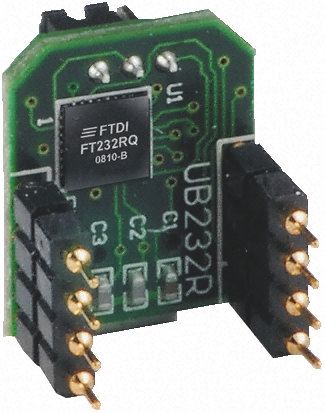

Image is for your reference only,please check specifications for details

UB232R - FTDI Chip
Manufacturer:
FTDI Chip
ManyChip's Part#:
MC24441785
Category:
Microprocessor Development Kit
Datasheet:
Datasheet 3D Model
Description:
MODULE, USB-SERIAL, FT232RQ BASED; Convert From: USB; SVHC: No SVHC; Mounting Type: Through Hole; Pitch: 2.54mm
Stock Locations:
Availability:
1,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.38

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UB232R is the smallest USB to serial development module based on FT232RQ USB to serial UART IC which handles all the USB signalling and protocols. To minimise the size of the module, the UB232R uses a standard USB mini B connector. This module supports RTS/CTS hardware handshaking and is USB powered. The UB232R supports data transfer rates from 300baud to 3Mbaud (RS422, RS485, RS232 and at TTL levels). In addition, two of the configurable CBUS pins of the FT232R are made available on the UB232R connector, allowing the UB232R to provide clock signals to external logic or they can be used to drive signal traffic indicator LEDs. The UB232R requires USB drivers which are used to make the FT232R on the UB232R appear as a virtual COM port. This then allows the user to communicate with the USB interface via a standard PC serial emulation port. Another FTDI USB driver, the D2XX driver, can also be used with application software to directly access the FT232R on the UB232R though a DLL.
The UB232R is fully compliant with USB 2.0 specification
Reduced development time
Rapid integration into existing systems
Entire USB protocol handled by USB module
Lower operating (15mA) and USB suspend mode current (70µA)
Support for USB suspend and resume
UHCI/OHCI /EHCI host controller compatible
Supports FT232R FTDIChip-ID with a unique USB serial number
USB powered, no external power supply needed

Show

UB232R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Pin Pitch	2.54 mm
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 VDC
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
