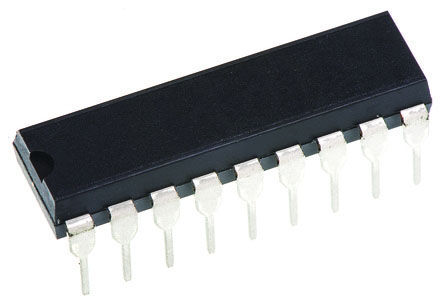

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC2526AN is an improved-performance Pulse Width Modulation (PWM) features more accurate oscillator with less minimum dead time, reduced circuit delays (particularly in current limiting) and an improved output stage with negligible cross-conduction current. It include the incorporation of a precision, band-gap reference generator, reduced overall supply current and the addition of thermal shutdown protection. It has the protective features of under-voltage lockout, soft-start, digital current limiting, double pulse suppression logic and adjustable dead time. For ease of interfacing, all digital control ports are TTL compatible with active low logic.
Reduced Supply Current
Precision band-gap reference
Dual 200mA source/sink outputs
Minimum output cross-conduction
Double-pulse suppression logic
Under-voltage lockout
Programmable soft-start
Thermal shutdown
TTL/CMOS Compatible logic ports
Green product and no Sb/Br

Show

UC2526AN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Frequency	600 kHz
Supply Voltage (DC)	7.00V (min)
Number of Outputs	2 Output
Input Voltage (DC)	35.0 V
Output Voltage	13 V
Output Current	100 mA
Number of Positions	18 Position
Power Dissipation	1000 mW
Quiescent Current	14.0 mA
Number of Regulated Outputs	2 Output
Rise Time	300 ns
Switching Frequency	550 kHz
Topology	Boost, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull
Duty Cycle	49 %
Maximum Duty Cycle	0.49
Fall Time	100 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	7V ~ 35V
Supply Voltage (Max)	35 V
Supply Voltage (Min)	7 V
Input Voltage	35 V
	Show
Size-Length	22.48 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
