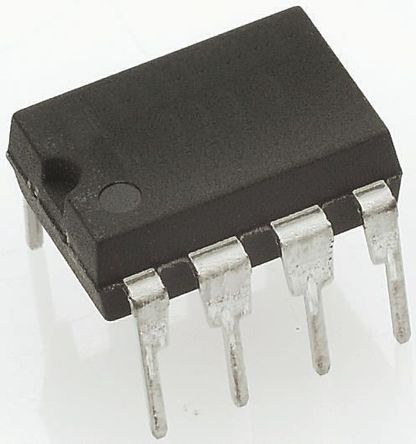

- UC2845BN - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC2149962
-
Category:Voltage Regulator
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Current Mode PWM Controller 1A 500kHz 8Pin PDIP Tube
-
Stock Locations:
-
Availability:909 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.76
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Look no further! The UC2845BN PWM controller from STMicroelectronics is the ideal tool for interfacing two different voltage circuits together. This current mode controller supports boost|flyback topology. Its single PWM output produces a current of 1000(Max) mA. Its switching regulator has a frequency of 500 kHz. This current mode controller"s maximum duty cycle is 50 %. This current mode controller has a minimum operating temperature of -25 °C and a maximum of 85 °C. This device has a maximum of 30 V.
UC2845BN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Frequency | 500 kHz |
| Supply Voltage (DC) | 15.0 V |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 30.0 V |
| Output Current | 1 A |
| Supply Current | 17 mA |
| Number of Positions | 8 Position |
| Power Dissipation | 1.25 W |
| Quiescent Current | 12.0 mA |
| Rise Time | 50 ns |
| Switching Frequency | 500 kHz |
| Duty Cycle | 50 % |
| Maximum Duty Cycle | 50 % |
| Fall Time | 50 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Power Dissipation (Max) | 1250 mW |
| Supply Voltage | 30 V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 11 V |
| Show | |
| Size-Length | 10.92 mm |
| Size-Width | 6.6 mm |
| Size-Height | 3.32 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
