UC3637N - TI
Manufacturer:
TI
ManyChip's Part#:
MC9422244
Category:
Motor Driver
Package:
DIP-18
Datasheet:
Datasheet 3D Model
Description:

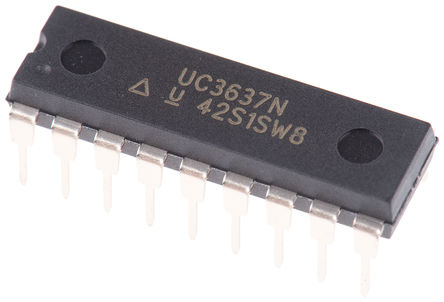

TEXAS INSTRUMENTS UC3637N Motor Driver/Controller, DC, 2.5V to 20V supply, 13.5V/100mA/2Outputs, DIP-18
Stock Locations:
Availability:
215 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.53

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC3637N is a Switched Mode Controller for DC motor drive. The pulse width modulator circuit intended to be used for a variety of PWM motor drive and amplifier applications requiring either uni-directional or bi-directional drive circuits. When used to replace conventional drivers, this circuit can increase efficiency and reduce component costs for many applications. All necessary circuitry is included to generate an analog error signal and modulate two bi-directional pulse train outputs in proportion to the error signal magnitude and polarity. This monolithic device contains a sawtooth oscillator, error amplifier and two PWM comparators with ±100mA output stages as standard features. Protection circuitry includes under-voltage lockout, pulse-by-pulse current limiting and a shutdown port with a 2.5V temperature compensated threshold.
Pulse-by-pulse current limiting
Under-voltage lockout
Shutdown input with temperature compensated 2.5V threshold
Uncommitted PWM comparators for design flexibility
Dual 100mA, source/sink output drivers
±5% Initial oscillator accuracy
±10% Over-temperature

Show

UC3637N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	18 Pin
Case/Package	DIP-18
Frequency	10 kHz
Supply Voltage (DC)	2.50V (min)
Operating Voltage	3.9V ~ 20V
Power Rating	1 W
Number of Outputs	2 Output
Output Voltage	13.5 V
Output Current	100 mA
Supply Current	15 mA
Number of Channels	2 Channel
Number of Positions	18 Position
Power Dissipation	1000 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	2.5V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	2.5 V
	Show
Size-Length	22.48 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Weight	0.0192976350656 kg
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
