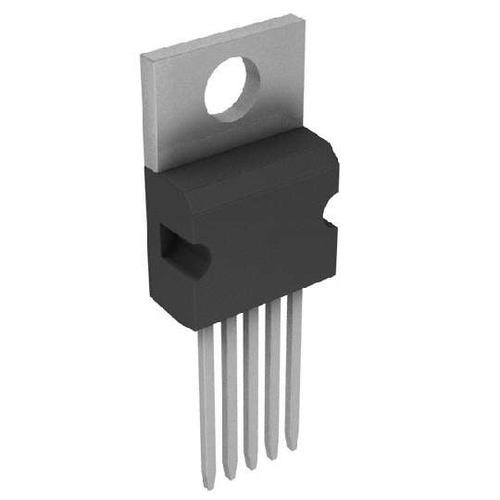

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC3710TG3 is a complementary high current MOSFET Driver made with a high-speed Schottky process to interface between low-level control functions and very high-power switching devices-particularly power MOSFETs. This device accepts low-current digital inputs to activate a high-current, totem pole output which can source or sink a minimum of 6A. Supply voltages for both VIN and VC can independently range from 4.7 to 18V. This device also feature under-voltage lockout with hysteresis.
Inverting and non-inverting outputs
Under-voltage lockout with hysteresis
Thermal shutdown protection
CMOS input threshold
20ns Rise and fall time into 2.2nF
8ns Rise and fall time into 30nF
Green product and no Sb/Br

Show

UC3710TG3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	4.70V (min)
Rise/Fall Time	85 ns
Number of Outputs	1 Output
Output Current	6.00 A
Number of Positions	5 Position
Power Dissipation	3 W
Rise Time	70 ns
Fall Time	80 ns
Fall Time (Max)	80 ns
Fall Time (Max)	70 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	3000 mW
Supply Voltage	4.7V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.7 V
	Show
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
