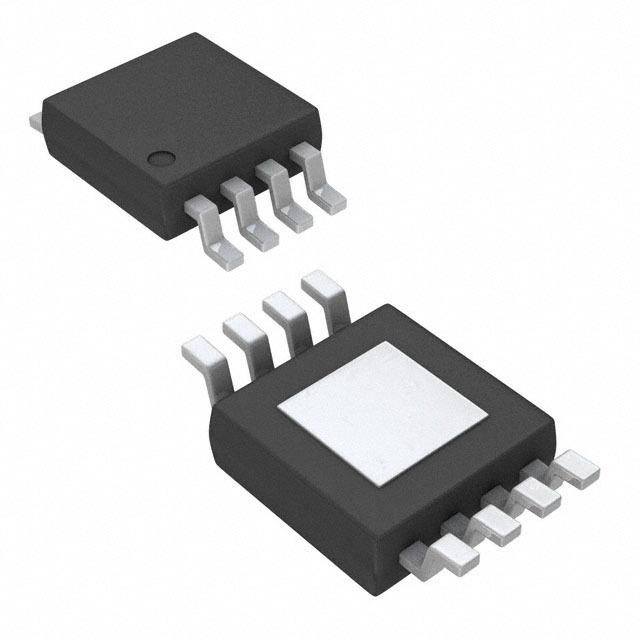

Image is for your reference only,please check specifications for details
- UCC27324DGNR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC8466596
-
Category:FET Driver
-
Package:PowerPad-MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:MOSFET Driver, 2Outputs, Low Side, 4V-15V supply, 4A and 30Ω output, MSOP-8
-
Stock Locations:
-
Availability:1,247 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 35.61
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The UCC37323/4/5 family of high-speed dual MOSFET drivers can deliver large peak currents into capacitive loads.Three standard logic options are offered dual-inverting, dual-noninverting and one-inverting and one-noninverting driver. The thermally enhanced 8-pin PowerPAD™ MSOP package (DGN) drastically lowers the thermal resistance to improve long-term reliability. It is also offered in the standard SOIC-8 (D) or PDIP-8 (P) packages.
- FEATURES
- Industry-Standard Pin-Out
- High Current Drive Capability of ±4 A at the Miller Plateau Region
- Efficient Constant Current Sourcing Using a Unique BiPolar & CMOS Output Stage
- TTL/CMOS Compatible Inputs Independent of Supply Voltage
- 20-ns Typical Rise and 15-ns Typical Fall Times with 1.8-nF Load
- Typical Propagation Delay Times of 25 ns with Input Falling and 35 ns with Input Rising
- 4-V to 15-V Supply Voltage
- Supply Current of 0.3 mA
- Dual Outputs Can Be Paralleled for Higher Drive Current
- Available in Thermally Enhanced MSOP PowerPAD™ Package with 4.7°C/W θjc
- Rated From –40°C to 85°C
- APPLICATIONS
- Switch Mode Power Supplies
- DC/DC Converters
- Motor Controllers
- Line Drivers
UCC27324DGNR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PowerPad-MSOP-8 |
| Supply Voltage (DC) | 4.00V (min) |
| Rise/Fall Time | 20ns, 15ns |
| Number of Outputs | 2 Output |
| Output Current | 4 A |
| Power Dissipation | 2120 mW |
| Rise Time | 23 ns |
| Output Current (Max) | 4.5 A |
| Fall Time | 23 ns |
| Fall Time (Max) | 40 ns |
| Fall Time (Max) | 40 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 2120 mW |
| Supply Voltage | 4.5V ~ 15V |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 4 V |
| Show | |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
