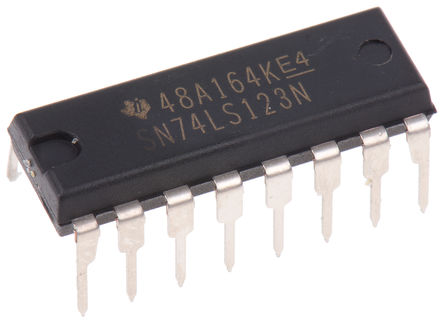

SN74LS123N - TI
Manufacturer:
TI
ManyChip's Part#:
MC2280940
Category:
Flip Flop IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
Monostable Multivibrator, 74LS123, 23ns, 8mA, 4.75V to 5.25V, DIP-16
Stock Locations:
Availability:
693 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LS123N is a dual retriggerable monostable Multi-vibrator features output pulse-duration control by three methods. The basic pulse time is programmed by selection of external resistance and capacitance values. It has an internal timing resistors that allow the circuits to be used with only an external capacitor, if so desired. Once triggered, the basic pulse duration may be extended by retriggering the gated low-level-active (A) or high-level-active (B) inputs or be reduced by use of the overriding clear. The LS123 are provided enough Schmitt hysteresis to ensure jitter-free triggering from the B-input with transition rates as slow as 0.1millivolt per nanosecond.
DC triggered from active-high or active-low gated logic inputs
Retriggerable for very long output pulses, up to 100% duty cycle
Overriding clear terminates output pulse

Show

SN74LS123N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Digital Logic Level	TTL
Supply Voltage (DC)	4.75V ~ 5.25V
Output Current	8 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	16 Position
Number of Bits	2 Bit
Voltage Nodes	5.00 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
