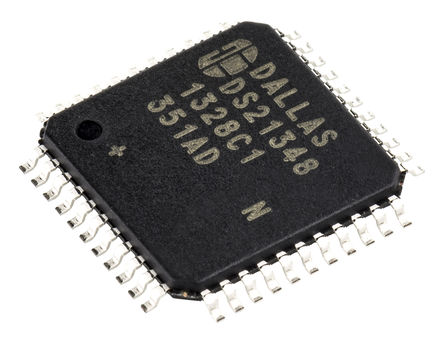

Image is for your reference only,please check specifications for details
- DS21348TN+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC10913600
-
Category:Interface IC, Interface Controller
-
Package:TQFP-44
-
Datasheet:Datasheet 3D Model
-
Description:Framer E1/J1/T1 3.3V 44Pin TQFP
-
Stock Locations:
-
Availability:226 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.48
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The DS21348TN+ from Maxim Integrated Products is a 3.3V E1/T1/J1 line interface in 44 pin TQFP package. It is a complete selectable E1 or T1 line interface unit for short-haul and long-haul applications. Receive sensitivity adjusts automatically to the incoming signal and can be programmed for 0dB to 12dB or 0dB to 43dB for E1 applications and 0dB to 30dB or 0dB to 36dB for T1 applications. The device can generate the necessary G.703 E1 waveshapes in 75ohm or 120 ohm applications and DSX-1 line build-outs or CSU line build-outs of 0dB, -7.5dB, -15dB, -22.5dB for T1 applications. The crystal-less on-board jitter attenuator requires only a 2.048MHz MCLK for both E1 and T1 applications. The jitter attenuator FIFO is selectable to either 32bits or 128bits in depth and can be placed in either the transmit or receive data paths. An X 2.048MHz output clock synthesized to RCLK is available for use as a backplane system clock.
- 3.3V power supply, 50mA (RMS) current limiter, operating temperature range from -40°C to 85°C
- 32bit/128bit crystal less jitter attenuator requires 2.048MHz master clock for both E1 and T1
- Generates line build-outs with and without return loss for E1, DSX-1, CSU line build-outs for T1
- AMI, HDB3 and B8ZS, encoding/decoding
- 16.384MHz, 8.192MHz, 4.096MHz or 2.048MHz clock output synthesized to recovered clock
- Programmable monitor mode for receiver, NRZ/bipolar interface for Tx/Rx data I/O
- Loopbacks and PRBS pattern generation/ detection with output for received errors
- Generates/detects In-band loop codes, 1 to 16bit including CSU loop codes, RCL indication
- 8bit parallel or serial interface with optional hardware mode, transmit open-circuit detection
- Muxed and nonmuxed parallel bus supports Intel or Motorola, detects/generates blue (AIS) alarms
DS21348TN+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 44 Pin |
| Case/Package | TQFP-44 |
| Supply Voltage (DC) | 3.30 V |
| Supply Current | 66 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 44 Position |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.135V ~ 3.465V |
| Supply Voltage (Max) | 3.465 V |
| Supply Voltage (Min) | 3.135 V |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2013/06/20 |
| ECCN Code | EAR99 |
