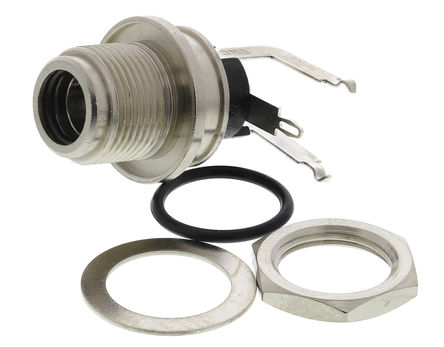

Image is for your reference only,please check specifications for details

L712RAS - Switchcraft / Conxall
Manufacturer:
Switchcraft / Conxall
ManyChip's Part#:
MC2491127
Category:
Connector
Datasheet:
Datasheet 3D Model
Description:
SWITCHCRAFT L712RAS DC Power Connector, Jack, 5A, 2.5mm, Through Hole Mount, 2.5mm
Stock Locations:
Availability:
709 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L712RAS is a sealed Power Jack with through-hole contact termination, 2.5mm centre pin, right angle PC terminal, 5A/30VDC rated, nickel-plated copper alloy housing, hexagonal nut, thermoplastic insulator housing, neoprene rubber, lubricated with synthetic grease O-ring, phenolic terminator insulator, nickel-plated steel flat washer and silver-plated copper alloy pin, spring and terminals. The sealed power jack provides a great waterproof alternative to the standard power jack. With an IP68/NEMA 250 (6P) rating this series of product is perfect for any type of environment.
Automatic switch over from AC to DC permitted by sleeve shunt spring
Split centre pin shaped to hold mating plug firmly
Right angle versions offer kinked PC terminals for board retention
500VAC Maximum dielectric withstanding voltage

Show

L712RAS Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Contacts	3 Contact
Gender	Female
Voltage Rating (DC)	30.0 V
Current Rating	5 A
Insulation Resistance	10000 MΩ
Current Rating (Max)	5 A
Operating Temperature (Max)	65 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating (Max)	30 VDC
Voltage Rating	30 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	26.3 mm
Color	Silver
Contact Material	Copper Alloy
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
