Description

Description
The UCC28722 flyback power supply controller provides isolated-output constant-voltage (CV) and constant-current (CC) output regulation without the use of an optical coupler. The device processes
information from the primary power switch and an auxiliary flyback winding for precise control of output voltage and current.
Features
• < 50-mW No-Load Power
• Primary-Side Regulation (PSR) Eliminates OptoCoupler
• Dynamic BJT Drive
• ± 5% Voltage and Current Regulation Across Line and Load
• 80-kHz Maximum Switching Frequency Enables High-Power Density Charger Designs
• Quasi-Resonant Valley-Switching Operation for Highest Overall Efficiency
• Wide VDD Range Allows Small Bias Capacitor
• Output Overvoltage, Low-Line, and Overcurrent Protection Functions
• Programmable Cable Compensation
• SOT23-6 Package
Applications
• USB-Compliant Adapters and Chargers for Consumer Electronics
– Smart Phones
– Tablet Computers
– Cameras
• Standby Supply for TVs and Desktops
• White Goods

Show

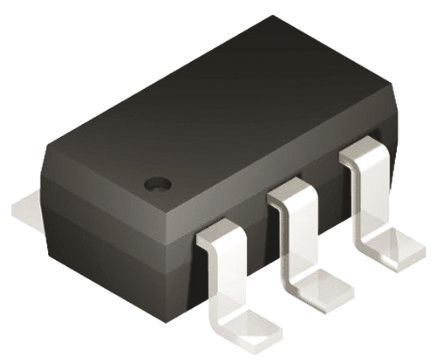

UCC28722DBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Supply Voltage (DC)	9.00V (min)
Number of Outputs	1 Output
Output Voltage	5.9 V
Number of Positions	6 Position
Switching Frequency	650Hz ~ 80kHz
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	35 V
Input Voltage	9V ~ 35V
	Show
Size-Length	3.05 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
