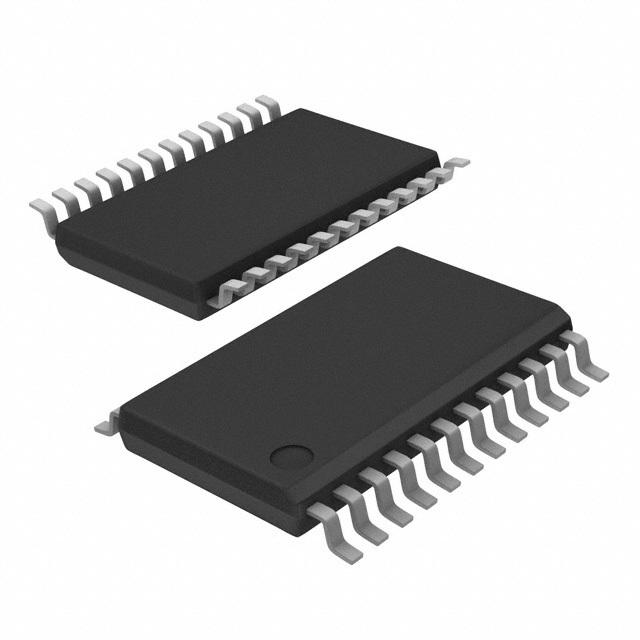

Image is for your reference only,please check specifications for details
- UCC28950TPWRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC120442250
-
Category:Voltage Regulator
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Soft Sw PWM Cntrlr 1Out Phase Shifted Full Bridge Controller 12V 50kHz to 1MHz 24Pin TSSOP T/R
-
Stock Locations:
-
Availability:252 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.21
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Full-Bridge Regulator Positive Output Step-Up/Step-Down DC-DC Controller IC 24-TSSOP
UCC28950TPWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Number of Outputs | 6 Output |
| Output Current | 200 mA |
| Number of Regulated Outputs | 4 Output |
| Switching Frequency | 50kHz ~ 1MHz |
| Topology | Full-Bridge |
| Duty Cycle | 97 % |
| Maximum Duty Cycle | 97 % |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 105℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
