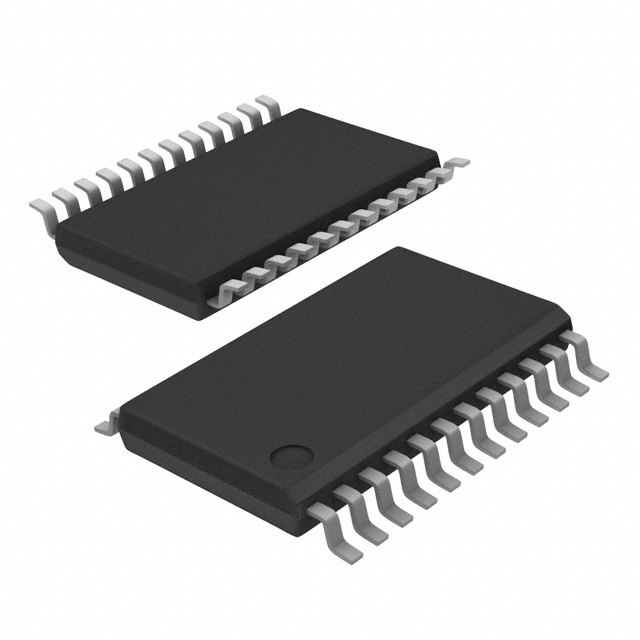

Image is for your reference only,please check specifications for details
- UCC28951QPWRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC9524338
-
Category:Voltage Regulator
-
Package:TSSOP-24
-
Datasheet:Datasheet 3D Model
-
Description:Switching Controllers Phase-Shifted Full-Bridge Controller for Wide Input Voltage Range 24-TSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:210 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 28.65
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The UCC28951-Q1 enhanced phase-shifted full bridge controller builds upon Texas Instrument’s industry standard UCx895 controller family with enhancements that offer best in class efficiency in today’s high performance power systems. The UCC28951-Q1 implements advanced control of the full-bridge along with active control of the synchronous rectifier (SR) output stage.
- Programmable delays ensure ZVS operation over a wide range of operating conditions, while the load current naturally tunes the switching delays of the secondary-side SRs, maximizing overall system efficiency.
- The UCC28951-Q1 offers multiple light-load management features including burst mode and dynamic SR on/off control when transitioning in and out of Discontinuous Current Mode (DCM) operation.
- In addition, the UCC28951-Q1 includes support for current or voltage mode control. Programmable switching frequency up to 1 MHz and a wide set of protection features including cycle-by-cycle current limit, UVLO and thermal shutdown.
- The UCC28951-Q1 is available in TSSOP-24 package and is RoHS compliant.
UCC28951QPWRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | TSSOP-24 |
| Number of Outputs | 6 Output |
| Output Current | 200 mA |
| Power Dissipation | 1070 mW |
| Rise Time | 9 ns |
| Switching Frequency | 1MHz (MAX) |
| Topology | Full-Bridge |
| Duty Cycle | 97 % |
| Maximum Duty Cycle | 0.95 |
| Fall Time | 7 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Input Voltage | 8V ~ 17V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status |
