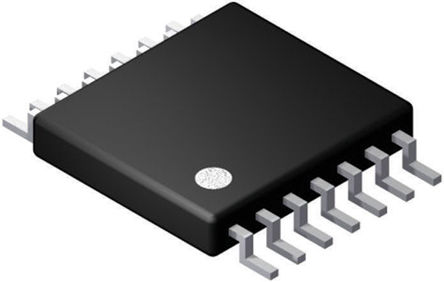

Image is for your reference only,please check specifications for details

UCD7100PWP - TI
Manufacturer:
TI
ManyChip's Part#:
MC42953857
Category:
FET Driver
Package:
HTSSOP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS UCD7100PWP. MOSFET IC, Low Side, 4.5V-15V Supply, 4A Out, 25ns Delay, HTSSOP-14
Stock Locations:
Availability:
286 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.7

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UCD7100PWP is a single low-side MOSFET Driver with current sense. The UCD7100 is a member of the UCD7K family of digital control compatible drivers for applications utilizing digital control techniques or applications requiring fast local peak current limit protection. The UCD7100 is a low-side ±4A high-current MOSFET gate driver. It allows the digital power controllers such as UCD9110 or UCD9501 to interface to the power stage in single ended topologies. It provides a cycle-by-cycle current limit function with programmable threshold and a digital output current limit flag which can be monitored by the host controller. With a fast 25ns cycle-by-cycle current limit protection, the driver can turn-OFF the power stage in the unlikely event that the digital system can not respond to a failure situation in time.
Adjustable current limit protection
DSP/µC compatible inputs
Programmable current limit threshold
Digital output current limit flag
3.3V/10mA Internal regulator
10ns Typical rise and fall times with 2.2nf loads
25ns Input-to-output propagation delay
Green product and no Sb/Br

Show

UCD7100PWP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	HTSSOP-14
Frequency	2 MHz
Supply Voltage (DC)	4.50V (min)
Rise/Fall Time	10 ns
Number of Outputs	1 Output
Number of Positions	14 Position
Input Voltage (Max)	14.5 V
Output Current (Max)	4 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 15V
Supply Voltage (Max)	15 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
HK STC License	NLR
