7-ch Darlington Sink Driver
The ULN2003APG/AFWG Series are high−voltage, high−current darlington drivers comprised ofseven NPN darlington pairs. All units feature integral clamp diodes for switching inductive
loads. Applications include relay, hammer, lamp and display (LED) drivers.
Features
Output current (single output): 500 mA max
High sustaining voltage output: 50 V min
Output clamp diodes
Inputs compatible with various types of logic

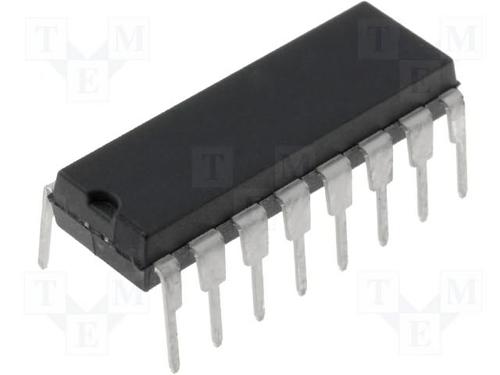

Package Type-APG: DIP-16pin
Package Type-AFWG: SOL-16pin

Show

ULN2003APG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Number of Outputs	7 Output
Output Voltage	2.50 V
Output Current	0.5 A
Number of Channels	7 Channel
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	50 V
Continuous Collector Current	0.5A
hFE Min	1000
Output Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1.47 W
Input Voltage	30 V
	Show
Size-Length	19.25 mm
Size-Width	6.4 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR
