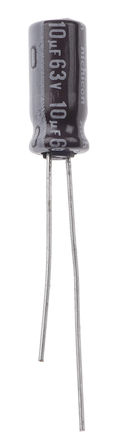

Image is for your reference only,please check specifications for details
- UPS1J100MDD - Nichicon
-
Manufacturer:Nichicon
-
ManyChip's Part#:MC13166400
-
Category:Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
-
Package:Radial, CAN
-
Datasheet:Datasheet 3D Model
-
Description:10uF ±20% 63V 110mA(100kHz)110mA Φ5mm
-
Stock Locations:
-
Availability:717 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.1
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Features:
- **
- * Wide Temperature Range Type, Miniature Sized
- * Compliant to the RoHS directive (2002/95/EC)**
- Specifications:
- **
- * Temperature Range: –55°C to +105°C**
- **
- * Rated Voltage Range: 6.3-450 V**
- **
- * Rated Capacitance Range: 0.47 to 15000 μF**
- **
- * Capacitance Tolerance: ±20% at 120 Hz, 20°C
UPS1J100MDD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | Radial, CAN |
| Pin Pitch | 2 mm |
| Voltage Rating (DC) | 63.0 V |
| Operating Voltage | 63 VDC |
| Capacitance | 10 µF |
| Equivalent Series Resistance (ESR) | 2.1 Ω |
| Capacitance Tolerance | ±20 % |
| Part Family | UPS |
| Ripple Current | 110 mA |
| Ripple Current (Low Frequency) | 18.7mA @120Hz |
| Ripple Current (High Frequency) | 110mA @100kHz |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 63 V |
| Show | |
| Size-Height | 11 mm |
| Size-Diameter | 5.00 mm |
| Dielectric Material | Aluminum Electrolytic |
| Operating Temperature | -55℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| Minimum Packing Quantity | 6000 |
| Life (Hours) | 2000h @105℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
