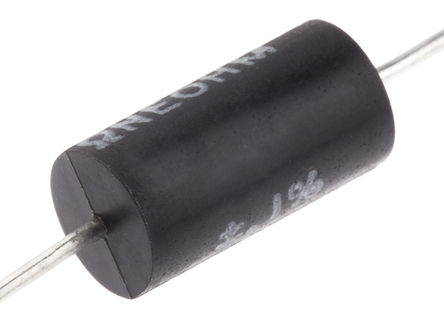

Image is for your reference only,please check specifications for details

UPW50B20RV - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC60092517
Category:
Through-Hole Resistor
Datasheet:
Datasheet 3D Model
Description:
TE CONNECTIVITY / NEOHM UPW50B20RV Through Hole Resistor, 20Ω, 400V, Axial Leaded, 0.5W(1/2W), ± 0.1%, UPW Series
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The resistive element is wire wound onto a moulded high temperature plastic bobbin with a central former. The direction of winding is reversed part way through the winding, giving very low values of inductance. These Neohm resistors are bobbin assemblies with flattened lead ends, providing high resistance to pull, vibration and torsional forces during handling, assembly and life.
**Features:**
* Custom weld tabs and copper weld leads ensure a good mechanical and electrical connection between the element and the lead wires. Protection is given to the windings by means of a layer of silicone RTV rubber. This allows movement of the windings during temperature cycling due to loads and to varying ambient temperatures. Outer protection is given by means of a hot transfer moulded epoxy compound which ensures an airtight coating with no trapped air
* Superior quality wire-wound resistors with very low selection tolerances and temperature coefficients down to 1 ppm. 3 case sizes are available. T/C, ratio and pair matching is available and customer specifications are welcome. These components exhibit high stability under load and severe environmental conditions

Show

UPW50B20RV Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Voltage Rating (DC)	400 V
Capacitance Tolerance	±0.1 %
Power Rating	0.5 W
Resistance	20 Ω
Resistance Tolerance	±0.1 %
Operating Temperature (Max)	145 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	400 V
	Show
Size-Length	12.7 mm
Size-Diameter	Φ6.35mm
Lead Length	25 mm
Operating Temperature	-55℃ ~ 145℃
Temperature Coefficient	±5 ppm/℃
Product Lifecycle Status	Active
Packaging	Box
Minimum Packing Quantity	500
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
