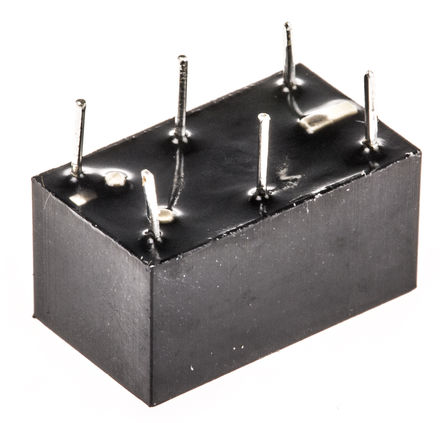

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The V23026A1001B201 is a 1-pole Signal Relay with DC coil, P1 series. 1 form-C (1CO) contact configuration. Palladium nickel, gold-rhodium covered contact, 1A switching current. Slim line 13.5 x 7.85mm (0.531 x 0.309-inch). Immersion cleanable, high sensitivity results in low nominal power consumption, 65 to 130mW for monostable and 30 to 150mW for bistable (latching). Directly triggerable with TTL standard modules as ALS, HCT and ACT. 2.5kV (2/10µs) initial surge withstand voltage, meets the Bellcore Requirement GR-1089 1.5kV (10/160µs) meets FCC Part 68.
Mono-stable coil
THT version
RT III Environmental protection rating

Show

V23026A1001B201 Specifications
